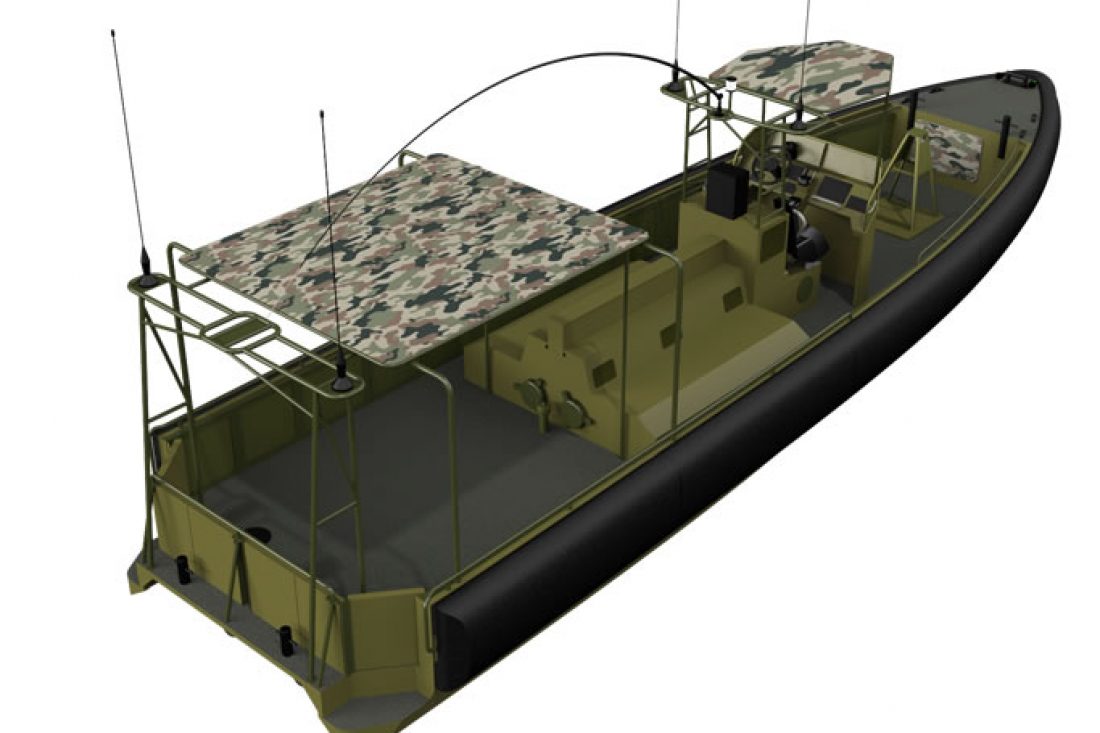

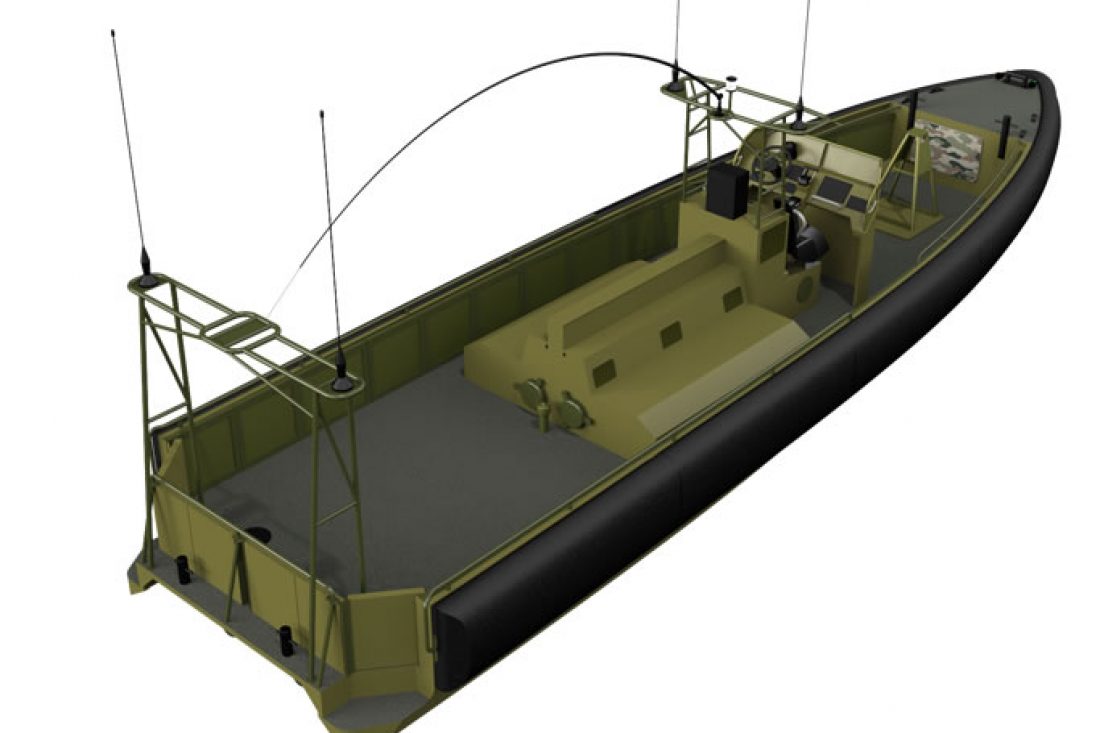

The 11m Offshore Raiding Craft (ORC) is a development of the 9m ORC which is in-service with the UK Royal Marines. This 11m Mid Console Variant in its basic form of a base vessel can be configured to fulfill two different roles, either as a Troop Carrying Variant (TCV) or as a Fire Support Platform (FSP). In either configuration the craft is provided with a forward weapon pedestal capable of mounting either a twin GPMG or a single HMG.

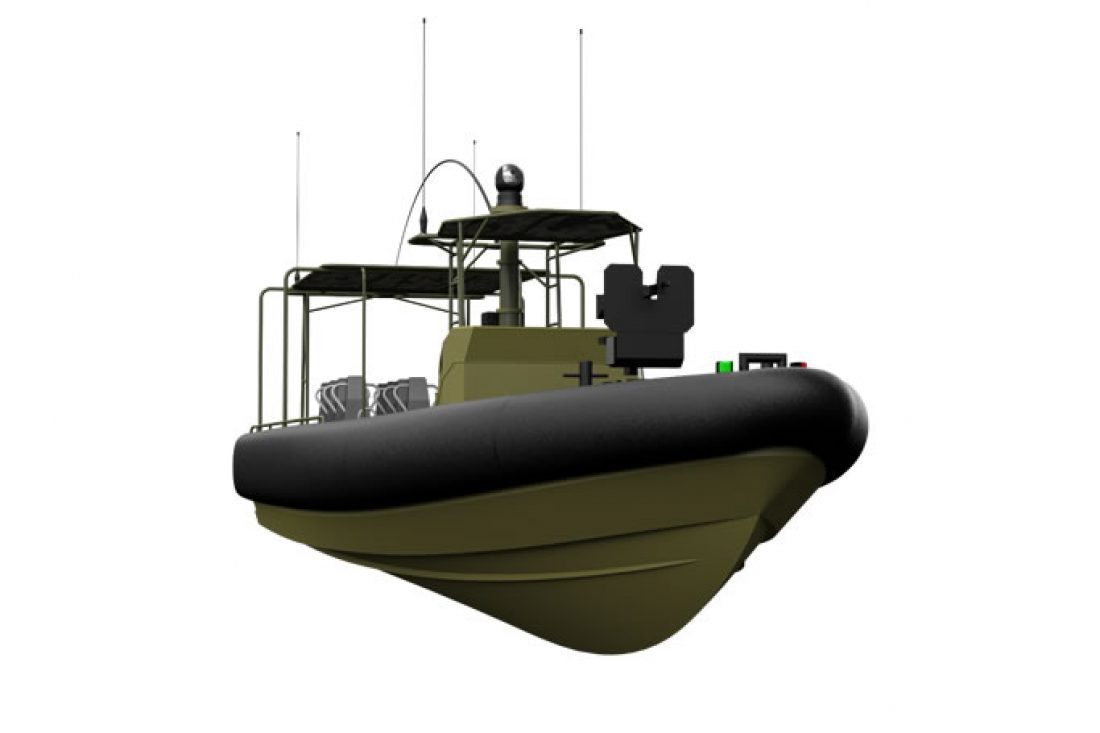

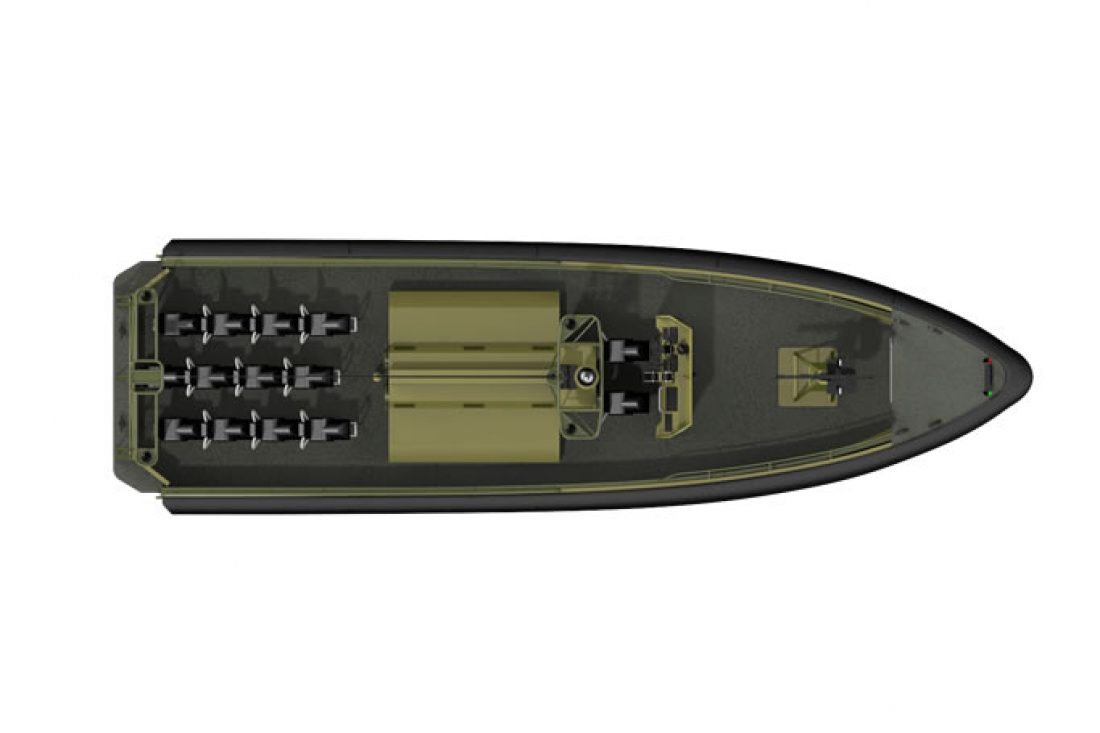

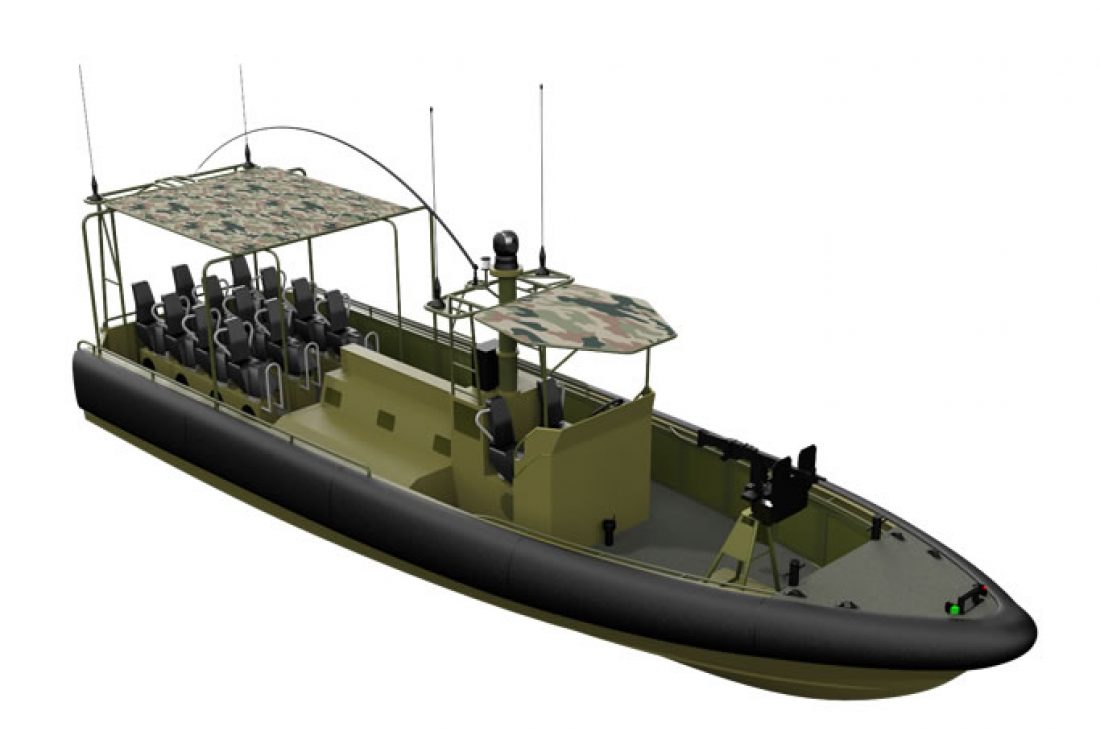

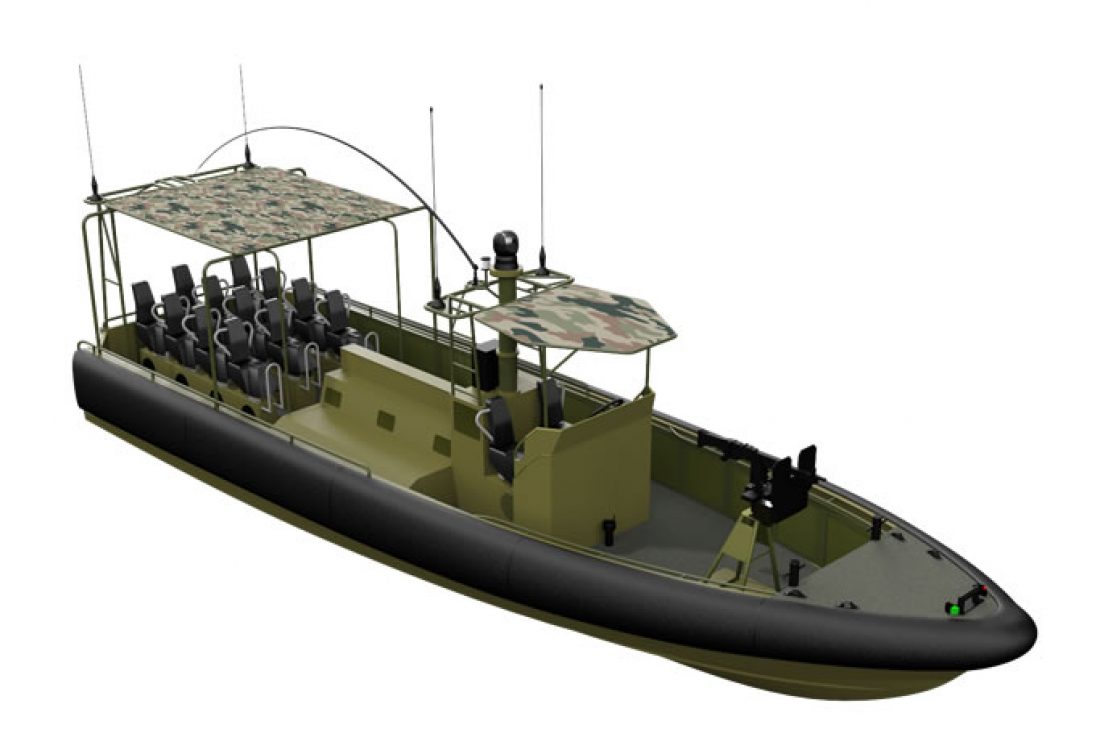

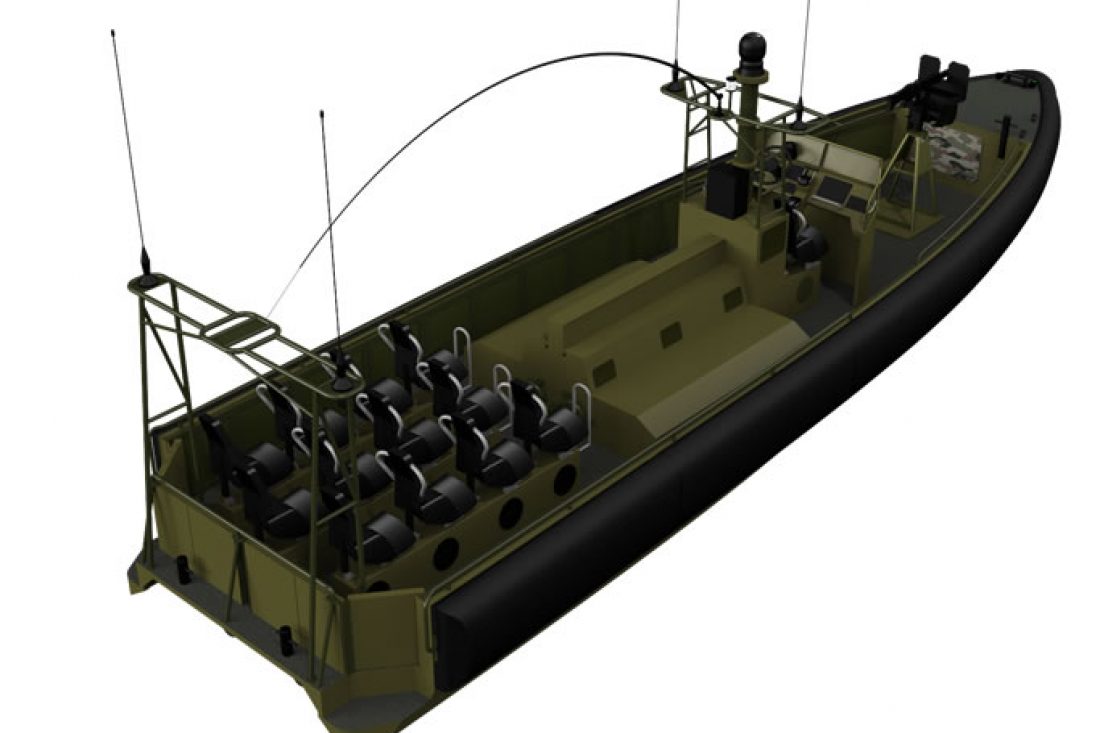

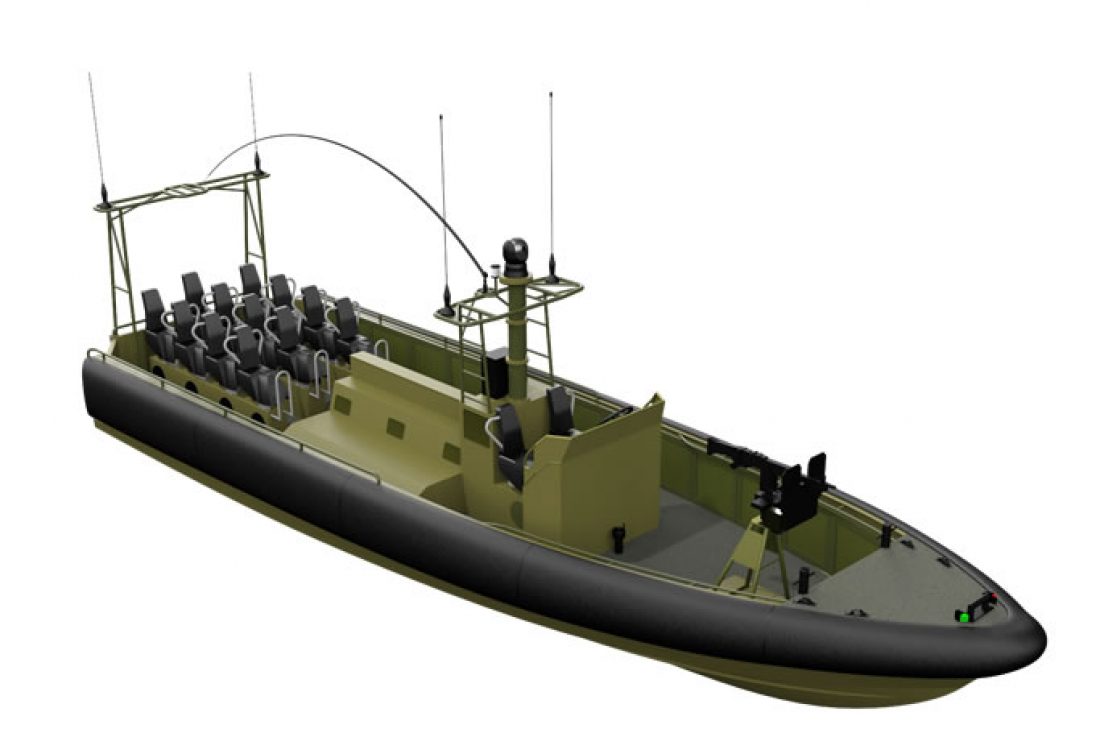

In the TCV configuration the craft is fitted with susspension seating for 12 Troops and two crew. The bulwarks can be fitted with ballistic armour panels providing protection from deck level to the top of the bulwarks. The components to configure the base vessel into a TCV can be fitted in less than two hours.

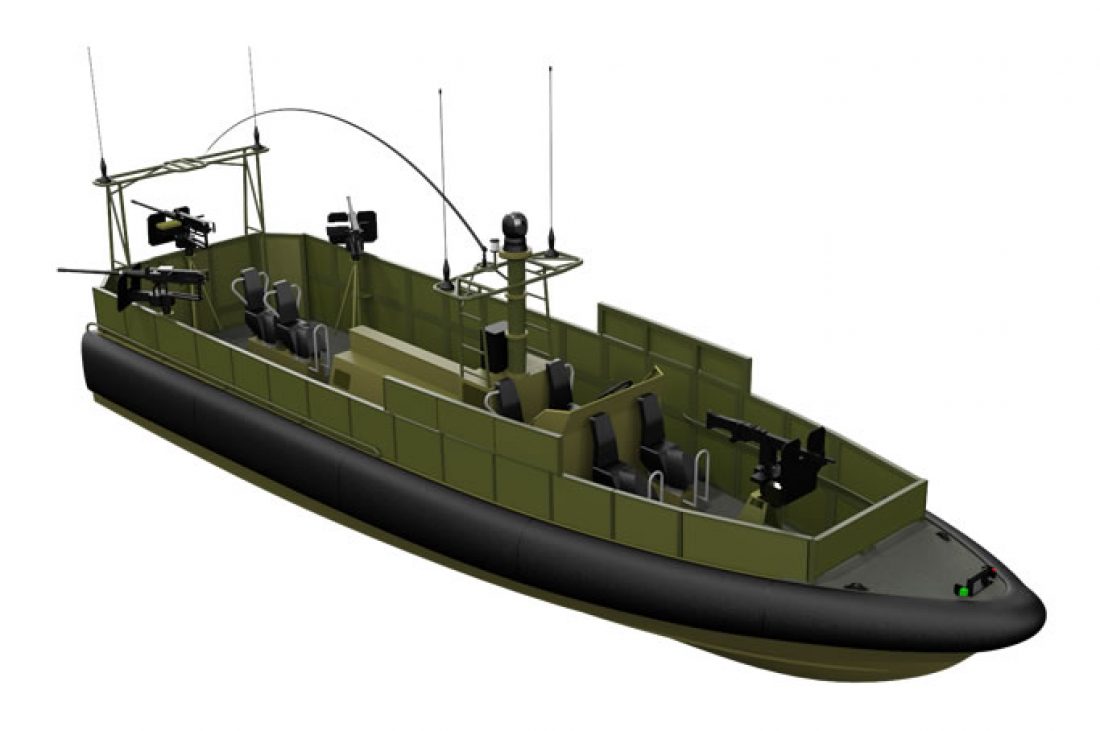

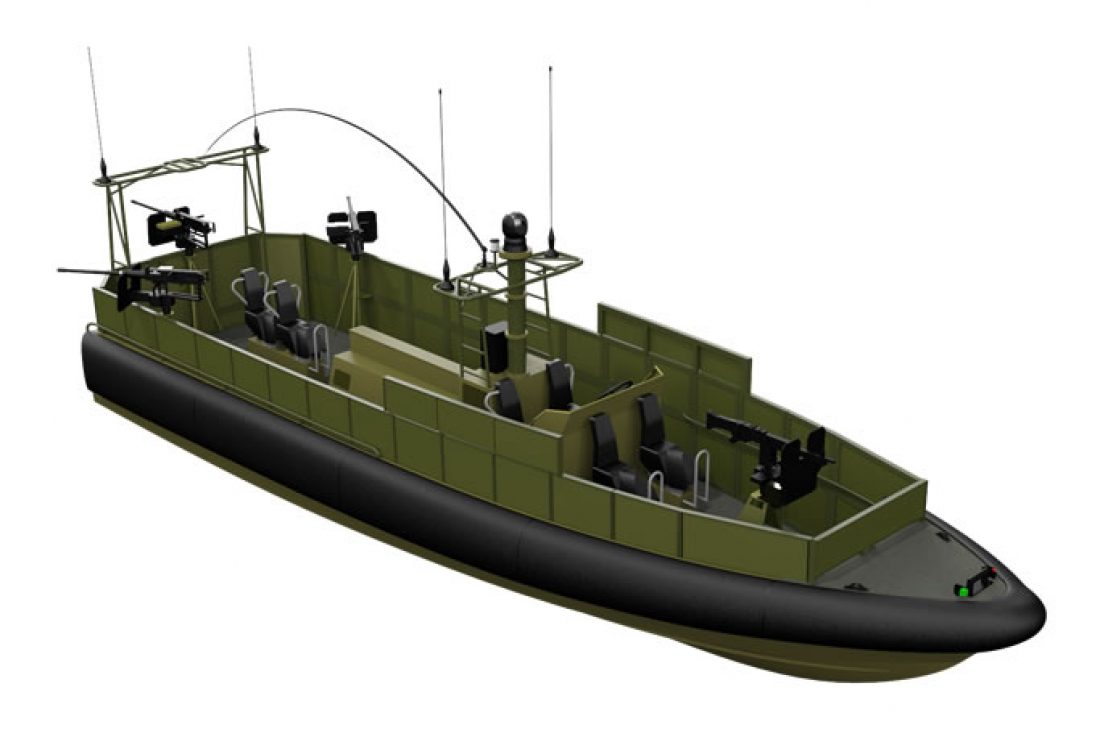

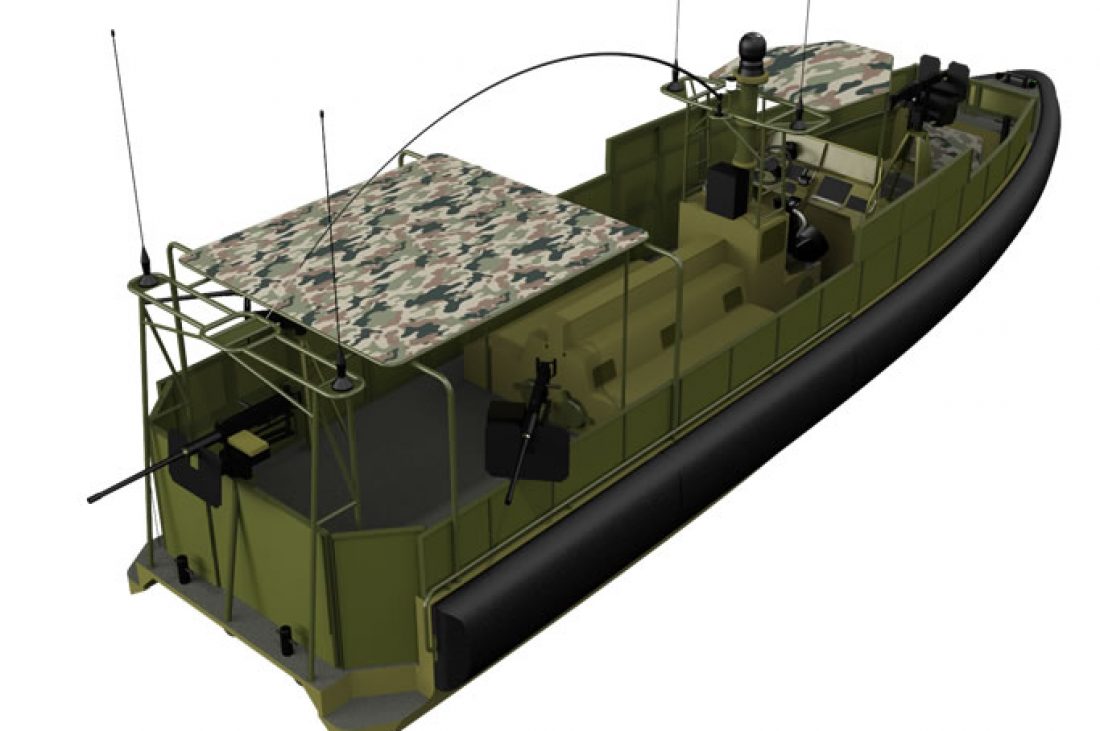

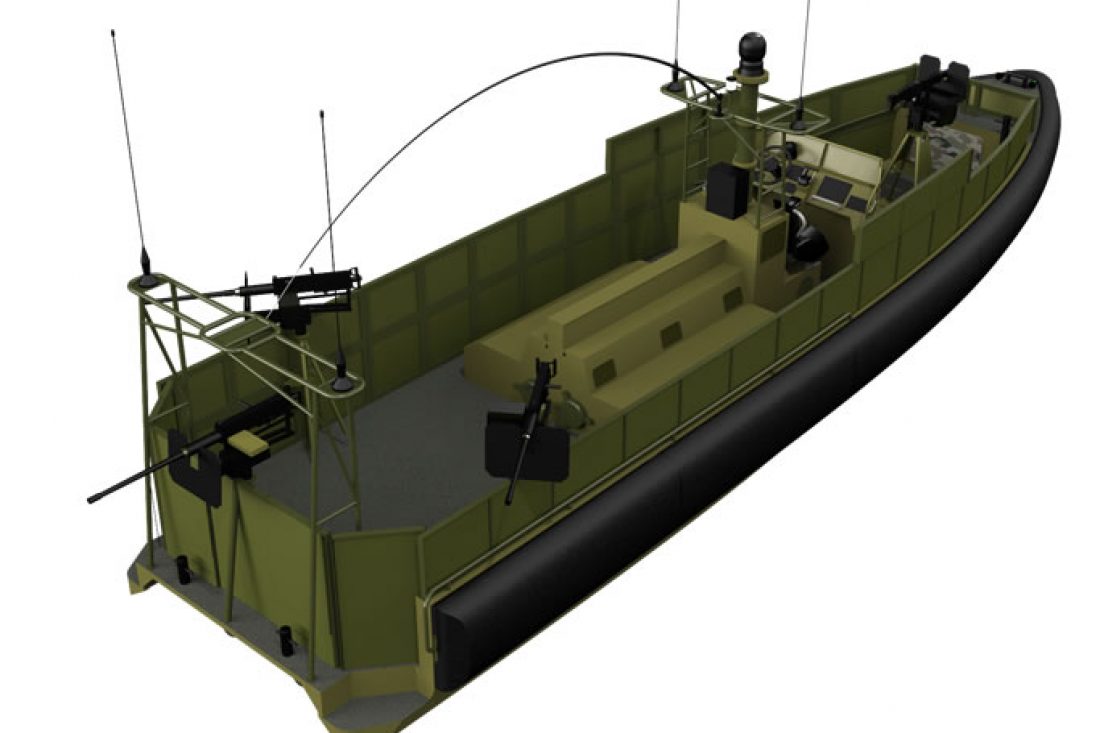

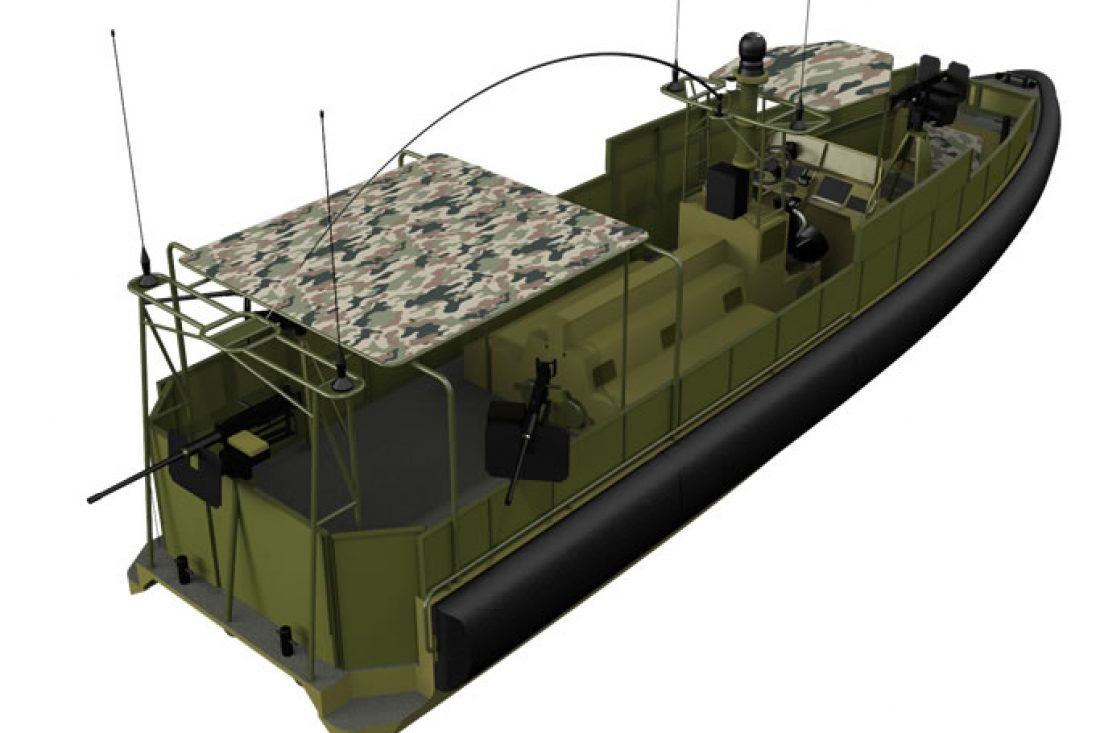

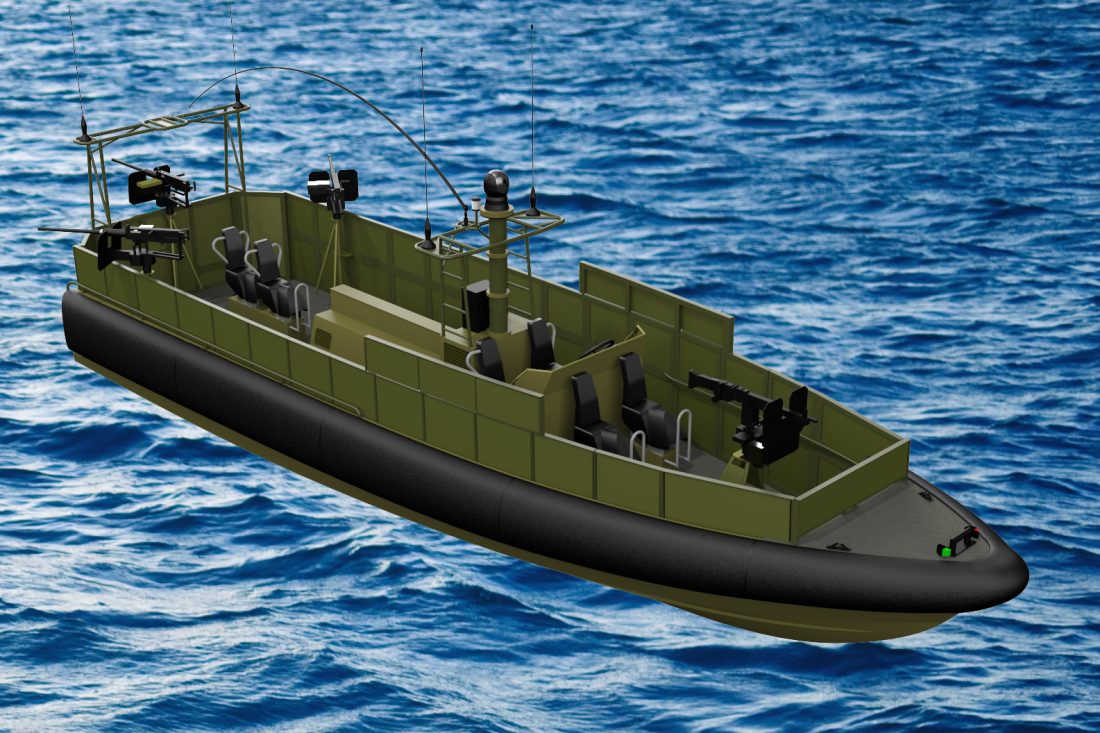

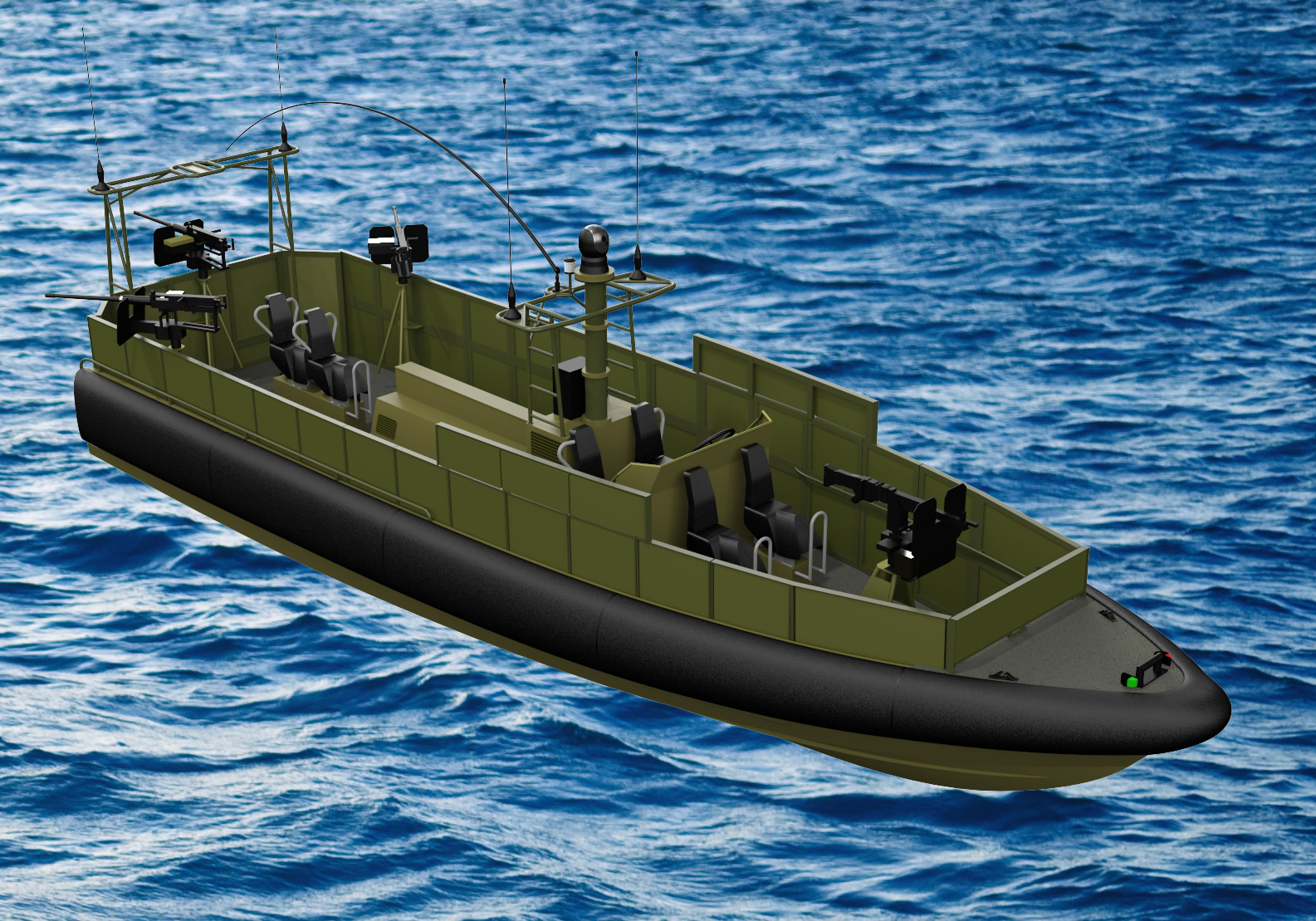

In the FSP configuration the craft is fitted with a ballistic armour panel framework which raises the protection to approximately 1100mm above deck level. Also incorporated into the framework are three weapon pedestals one port, one starboard and one aft on the centreline. Additional seating modules are also fitted to provide seating for two gunners forward and three gunners aft. The components to configure the base vessel into a FSP can be fitted in under four hours.


  • Length OA (inc. Fender): 11.34m
  • Beam OA (inc. Fender): 3.46m
  • Draught: 0.70m light load, 0.84m loaded
  • Displacement: 6400 kg inc fuel & 2 crew light load, 8500 kg loaded
  • Construction Material: Fabricated Aluminium (Grade 5083)
  • Max Speed: 40 knots
  • Speed Light Load 40 knots
  • Speed Loaded 30 knots
  • Range In excess of 160nm
  • Turning 1.5 boat lengths at max speed
  • Acceleration 0 to 30 Knots in 10 seconds
  • Stopping 1.5 boat lengths from max speed
  • Engines Twin Yanmar 6LY3 STP High Speed diesel engines developing 440bhp at 3300rpm
  • Gearboxes ZF280-1 reduction gearbox
  • Propulsion Twin Rolls Royce (Kamewa) FF270 Waterjets
  • Electrical 12V DC, Insulated return
  • Main Fuel Tank 800 Litres
  • Reserve Fuel Tank 85 Litres
  • Troop Capacity 14 Troops
  • Total Payload Capacity Combination of troops, equipment and weapons up to 2100kg
  • Communications Marine VHF
  • Navigation Chart Plotter with DGPS
  • Forward pedestal for single or twin GPMG
  • Elastomer covered closed cell PU foam fender
  • Removable seating and fairings for ease transportation and flexibility of function
