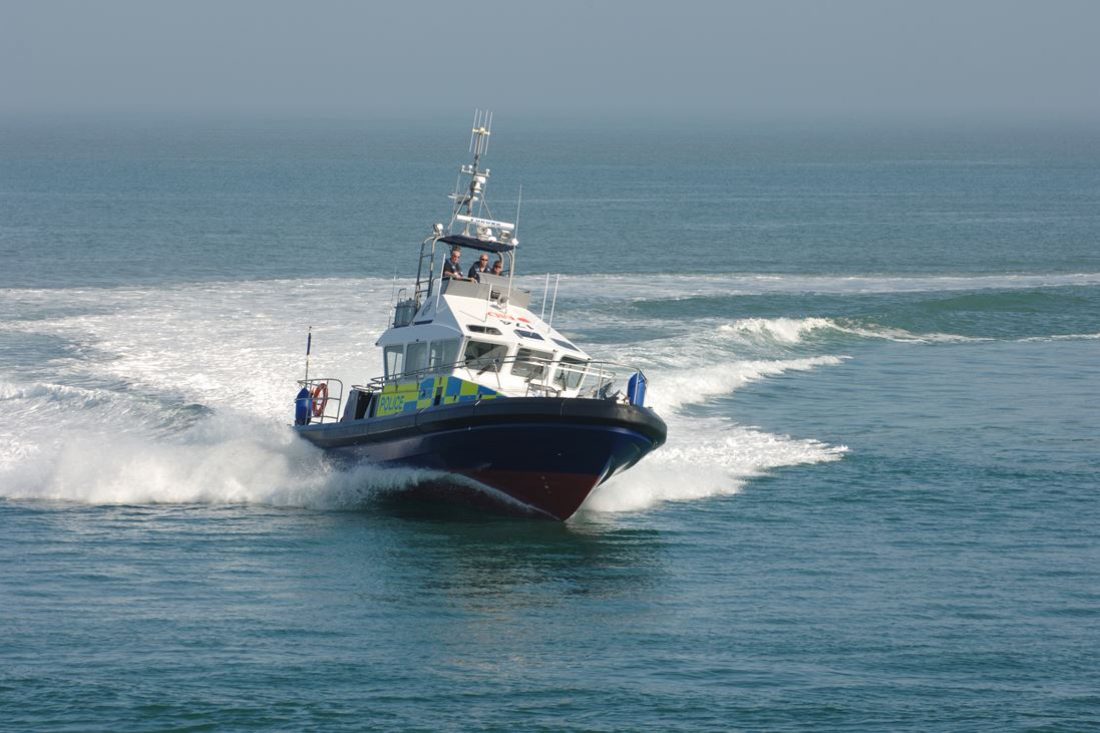

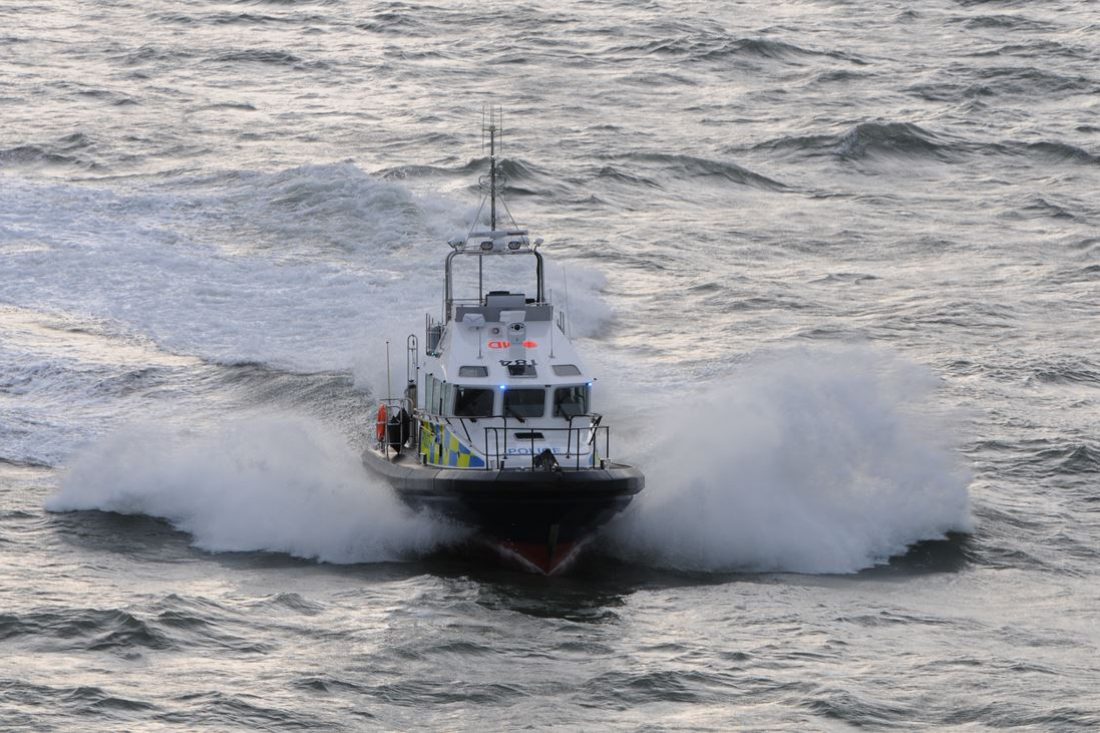

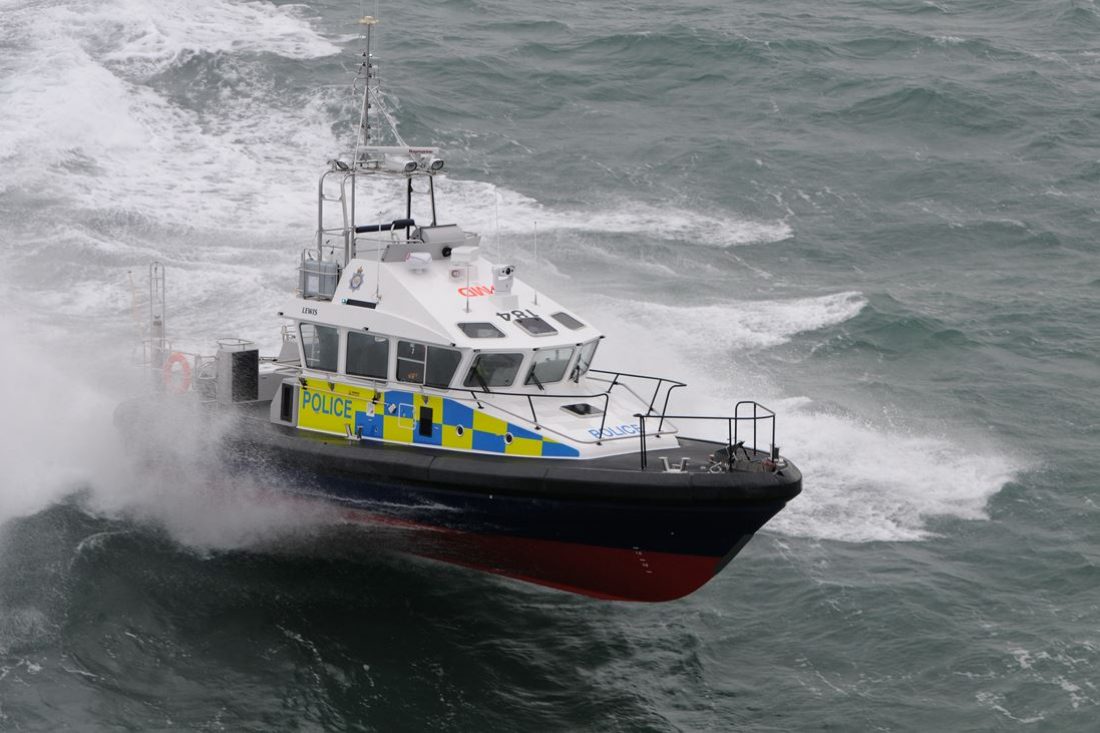

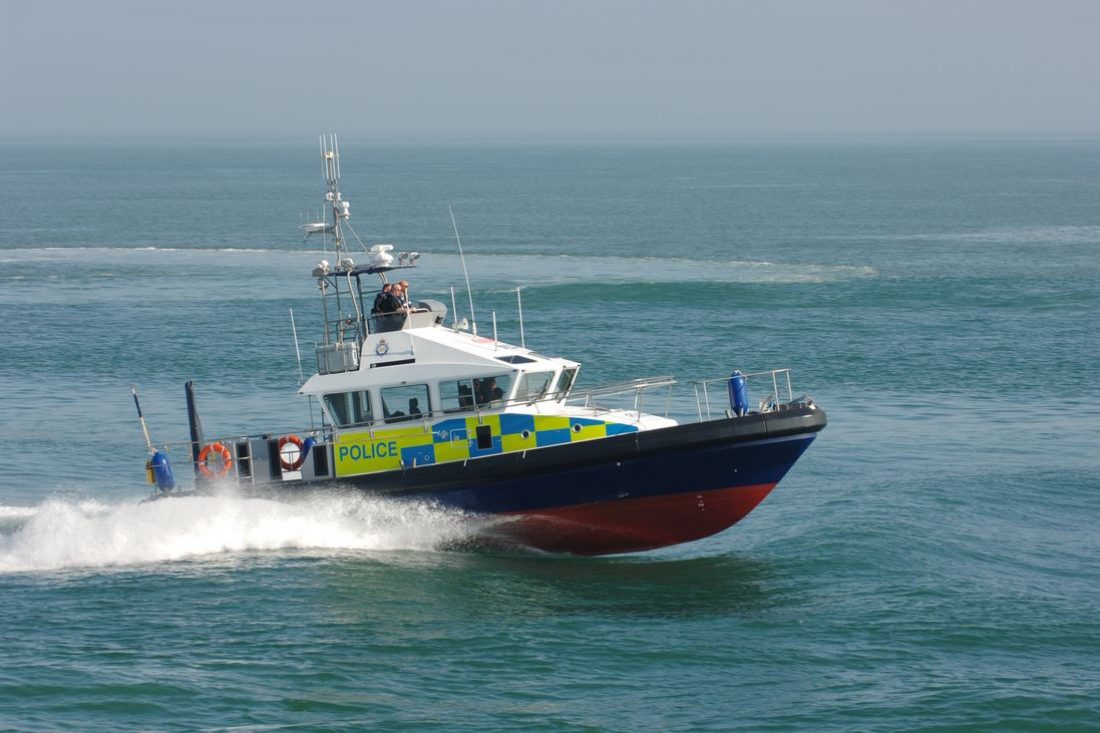

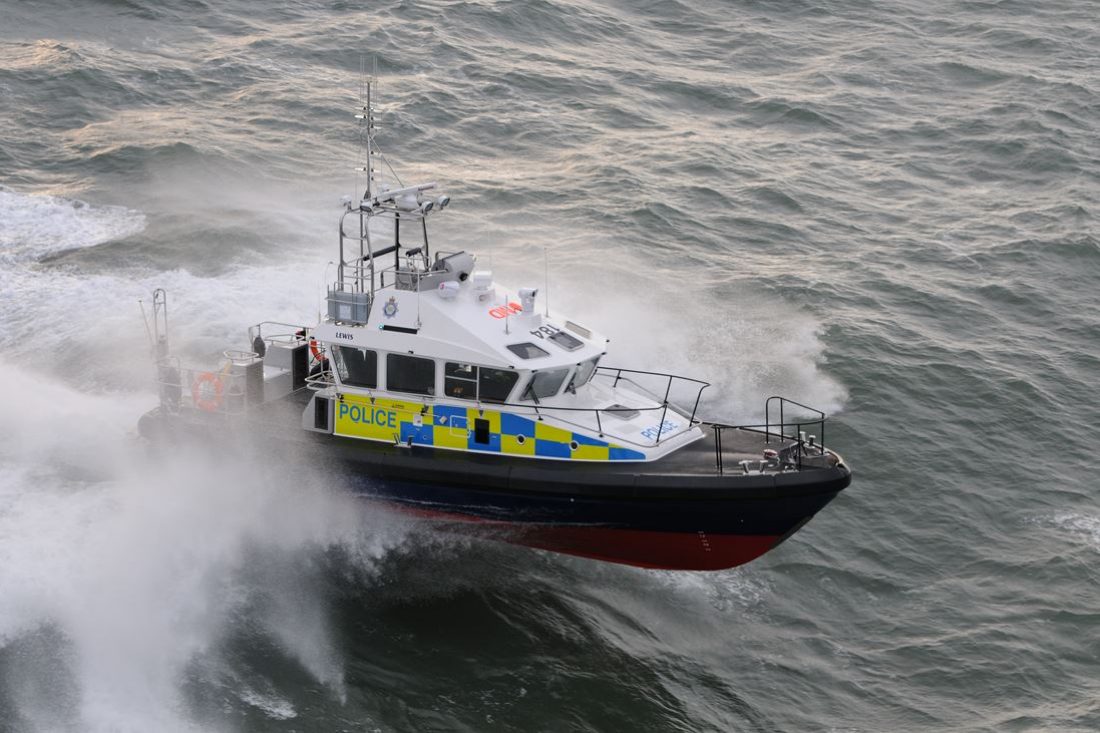

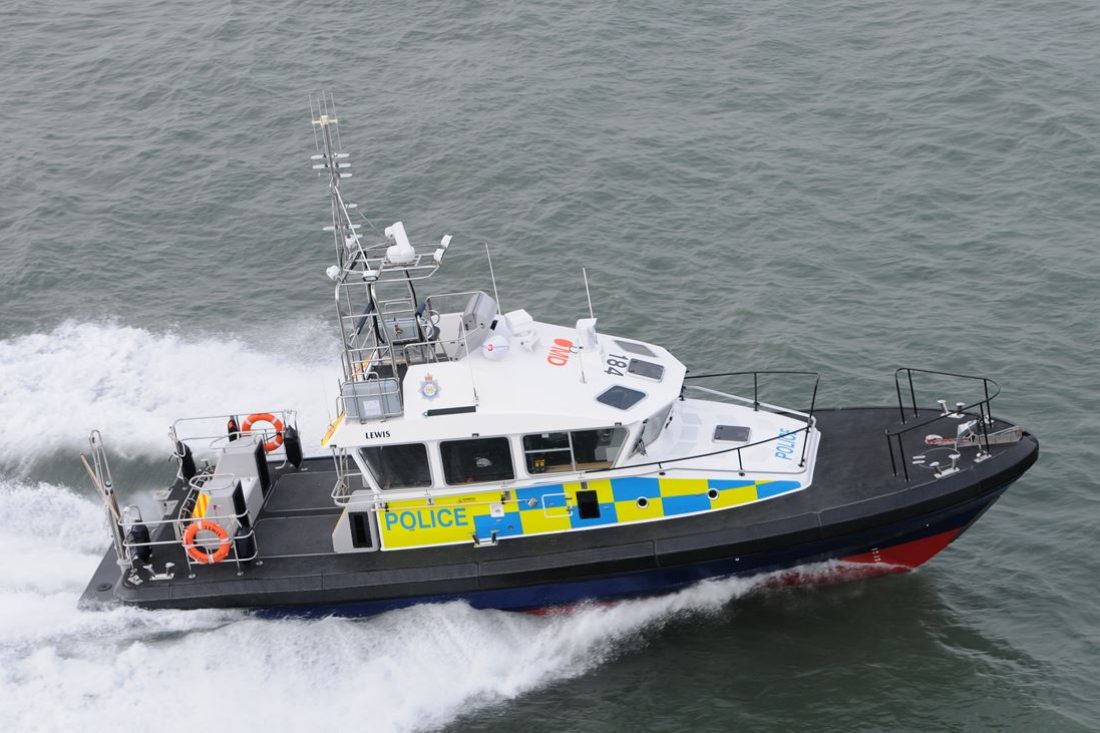

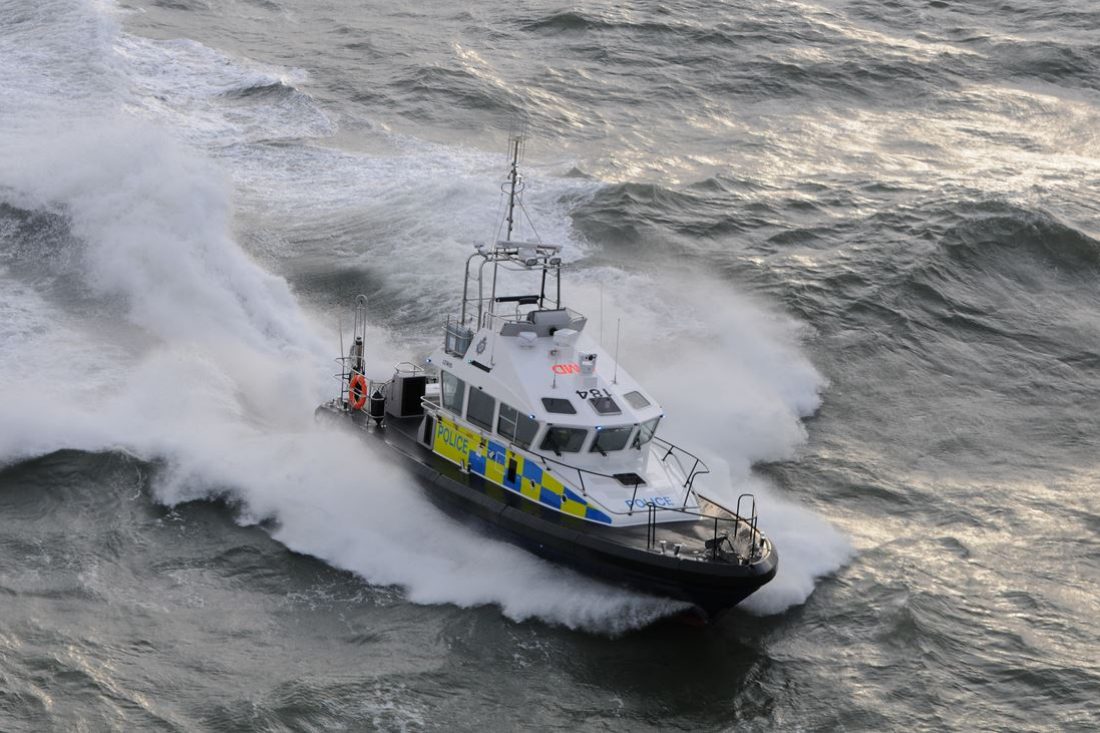

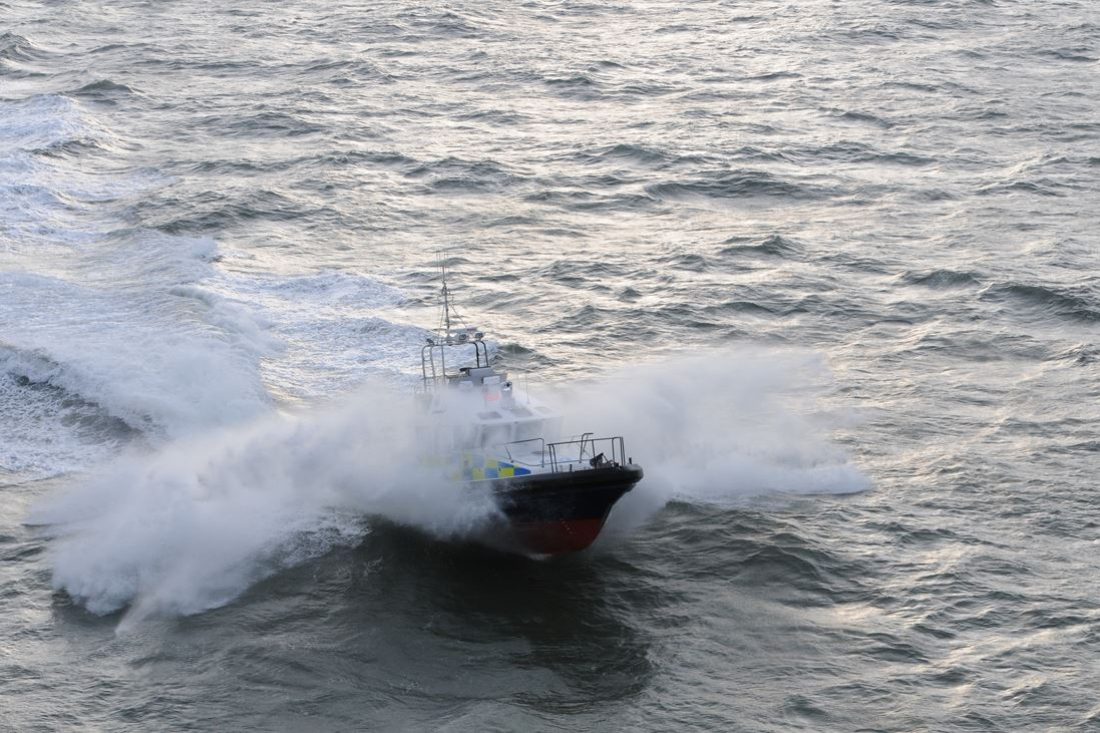

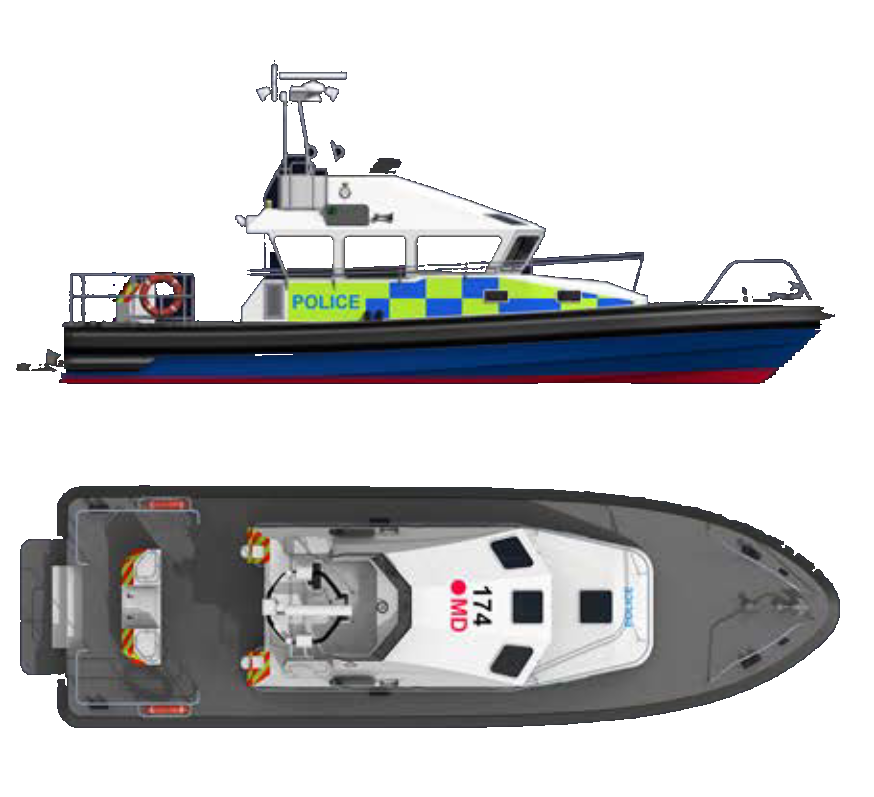

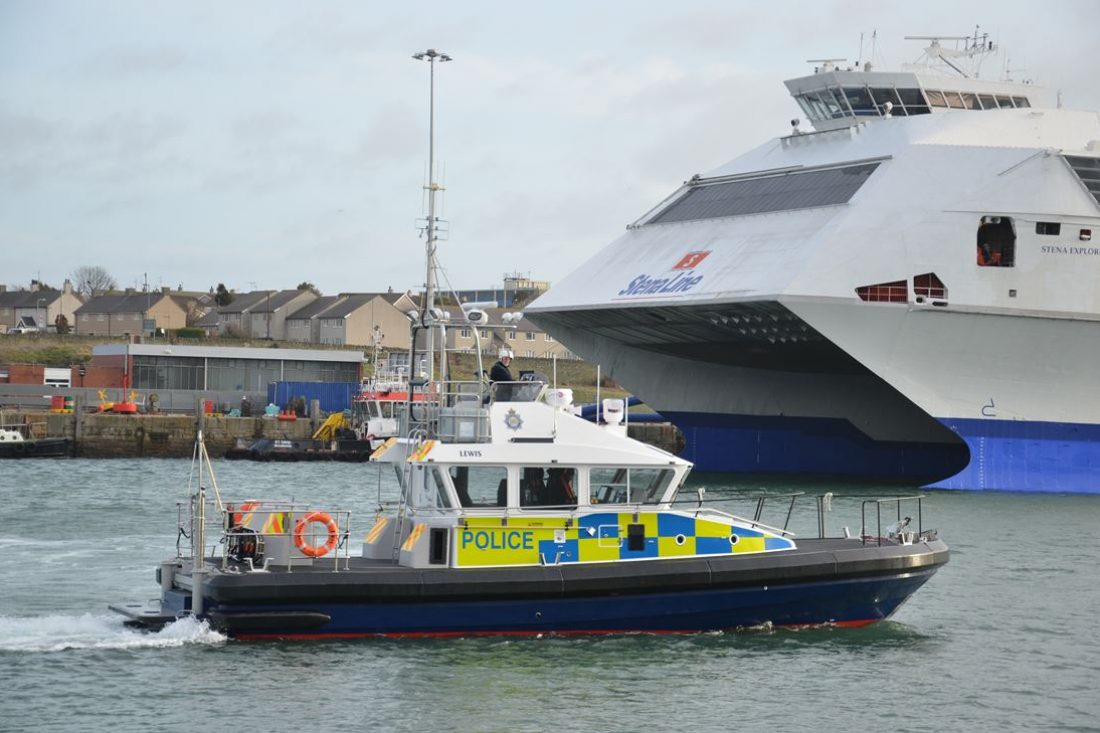

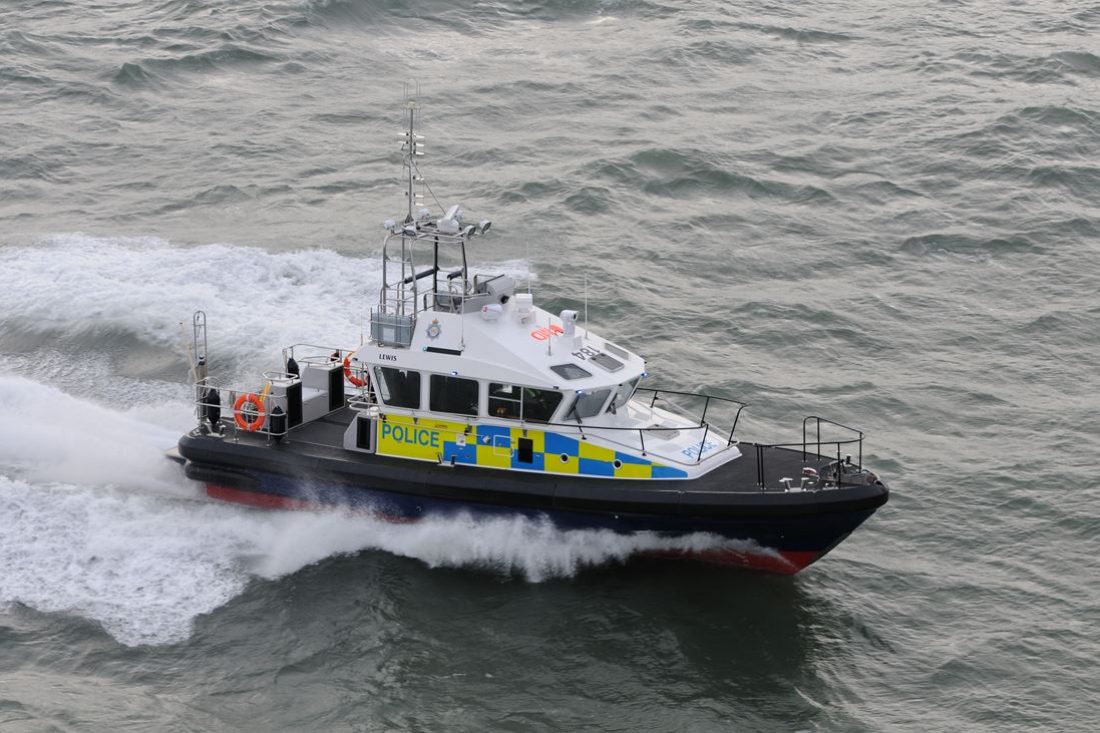

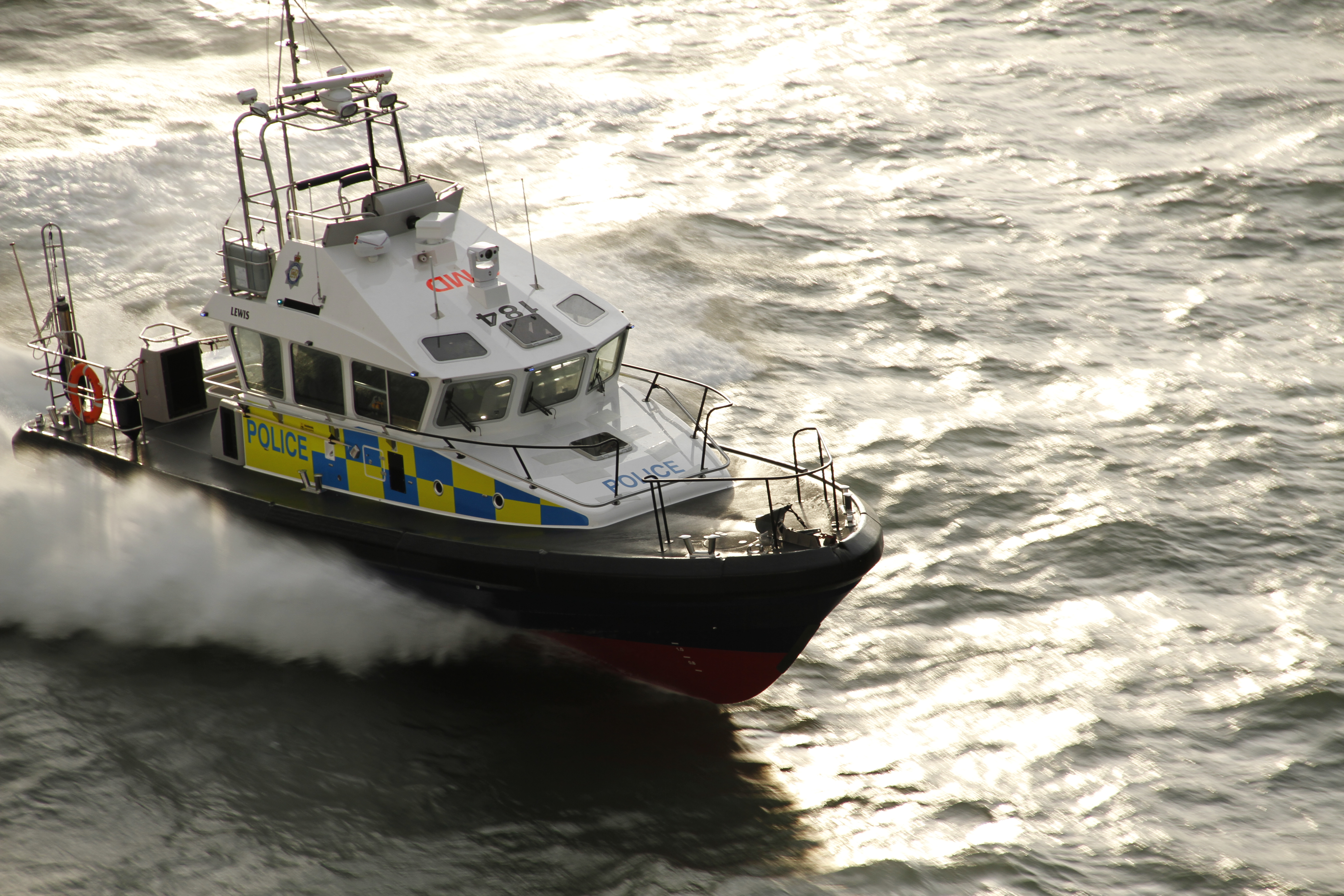

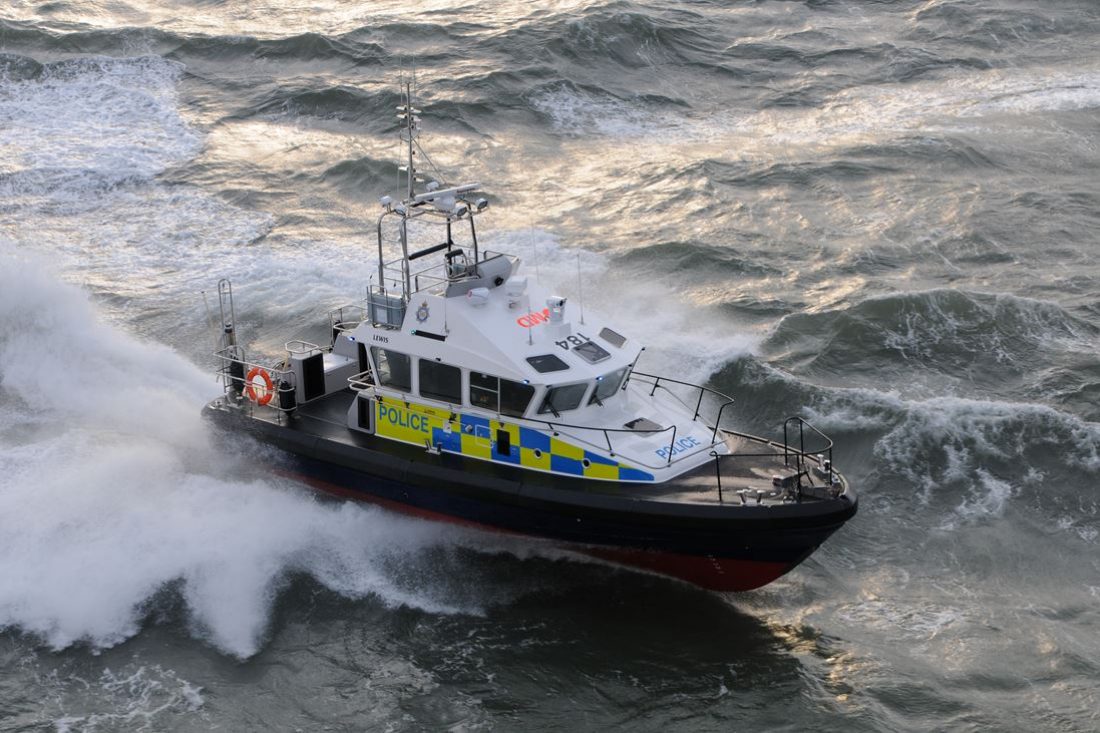

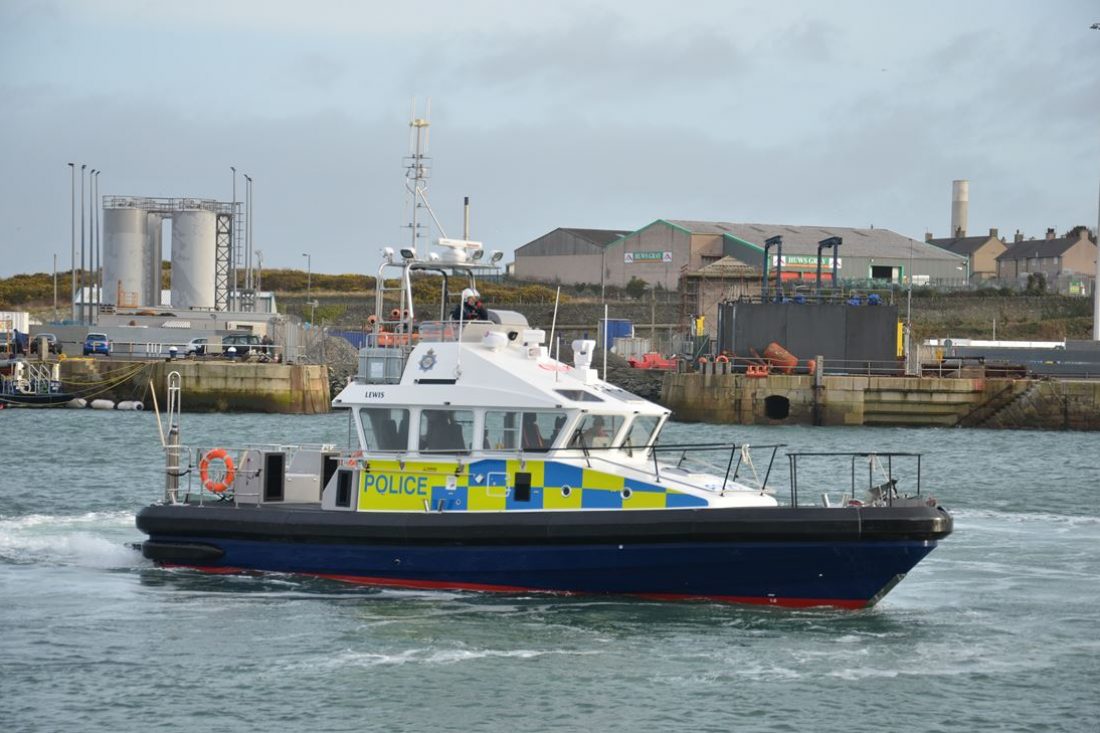

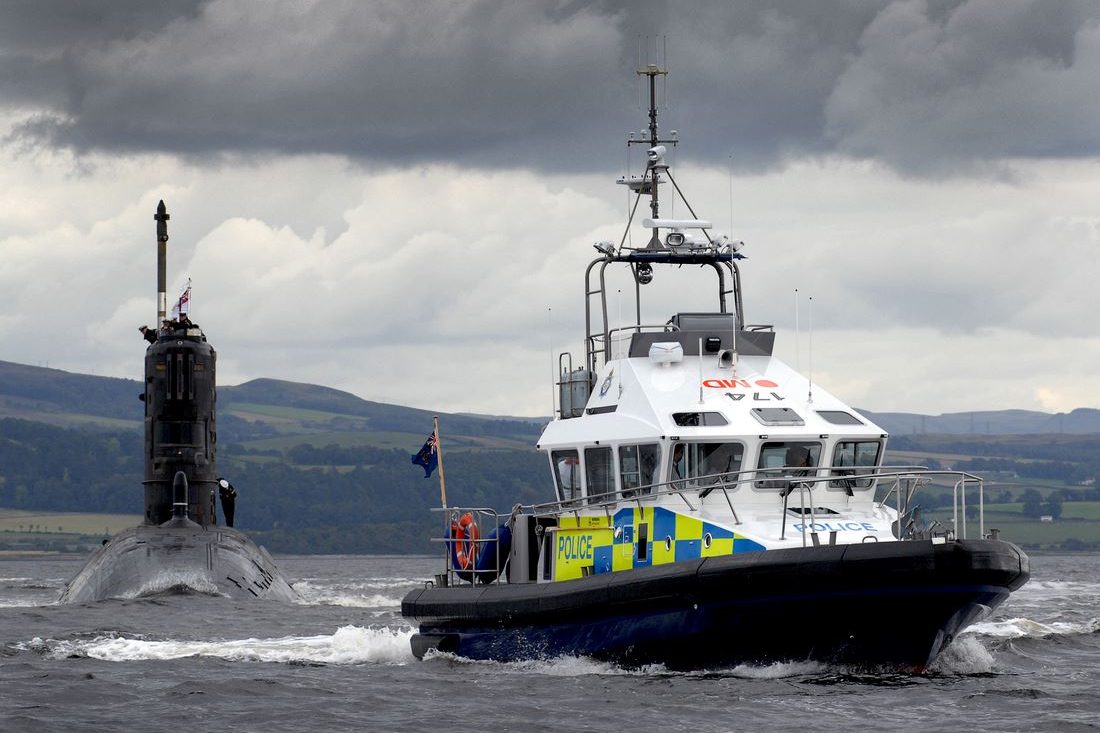

This 15m Patrol Boat is a new generation of MOD police boats built for patrol and escort duties around the three major UK naval bases. The design involved close collaboration between Holyhead Marine and Camarc and is based on a Camarc designed hull.

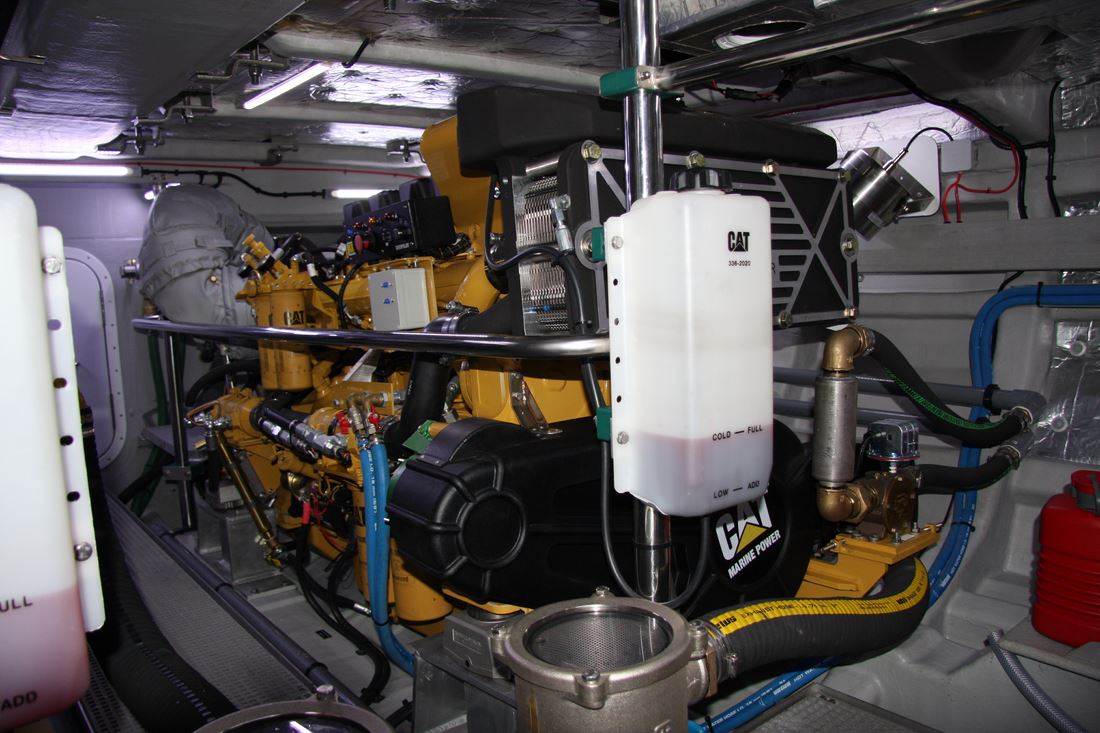

The vessel is of a GRP construction and has been designed with ease of ongoing maintenance and reduced downtime as a major philosophy. Extra large engine hatches are situated such that the twin Caterpillar C18 engines can be removed in a direct lift. To improve generator life as well as controlling weight the vessel has a state of the art electrical system has been employed including EmpirBus for the control and distribution of power and a Fischer Panda automatic start/stop generator which will deliver supply for the battery charging and inverter load on demand.

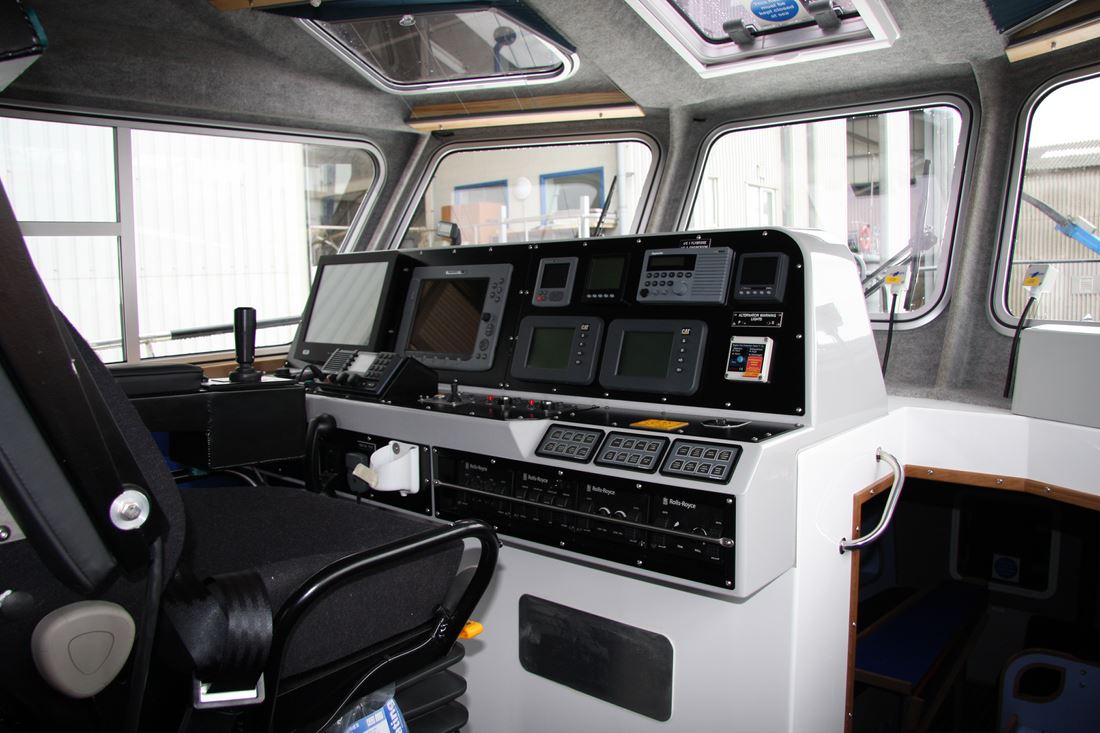

Crew comfort has been placed as a priority with the design of this boat. The air conditioned wheel house features suspension seats for crew and a seating area for passengers with 360 degree uninterrupted view around the vessel. The accommodation space houses seating for 8 and includes a shower, W/C and galley area.
One of the huge benefits of the boat is its versatility. With twin CAT C18 engines hooked up to Rolls Royce FF37 waterjets and controlled using a Vector Stick-IIC electronic-hydraulic control system this vessel has the power and maneuverability to perform magnificently as a patrol boat, but would be equally suited to a wide variety of other roles.
- Length OA (inc. Fender): 15.25m
- Length Waterline: 12.7m
- Beam OA (inc. Fender): 4.6m
- Beam moulded: 4.15m
- Draught: 0.90m
- Displacement: 19.9 tonnes
- Construction Material: GRP
- Built in accordance with: MCA SCV code and ACPO
- Structure: designed and moulded under survey to LRS SSC rules

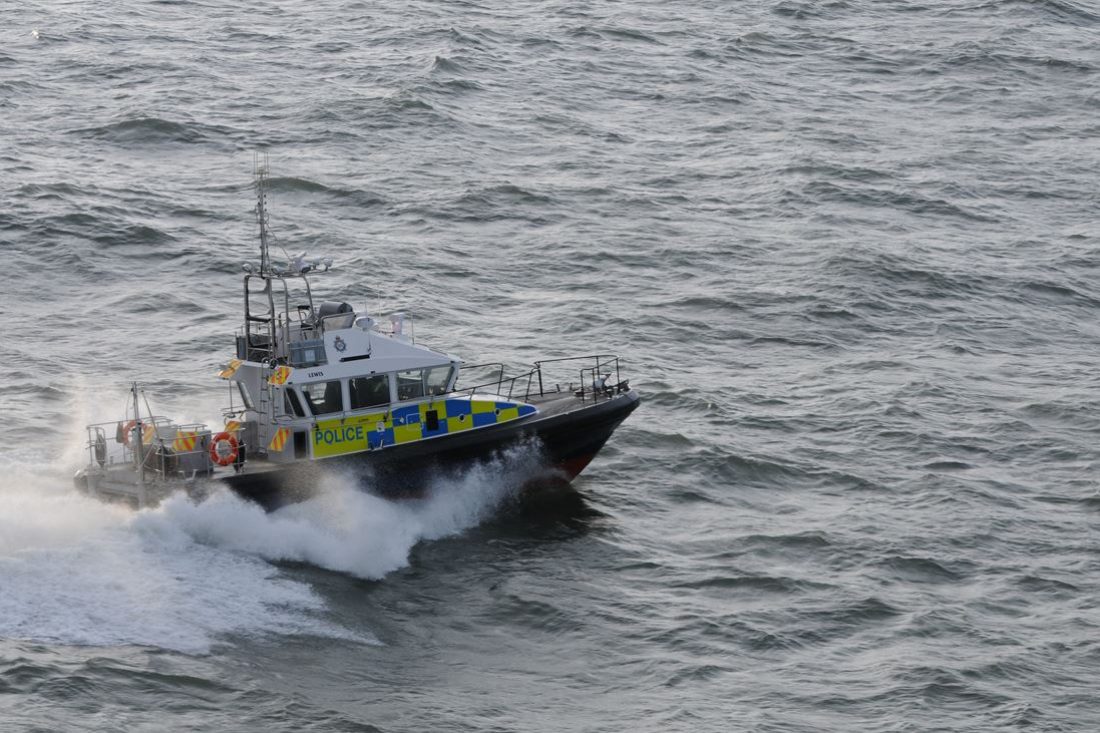

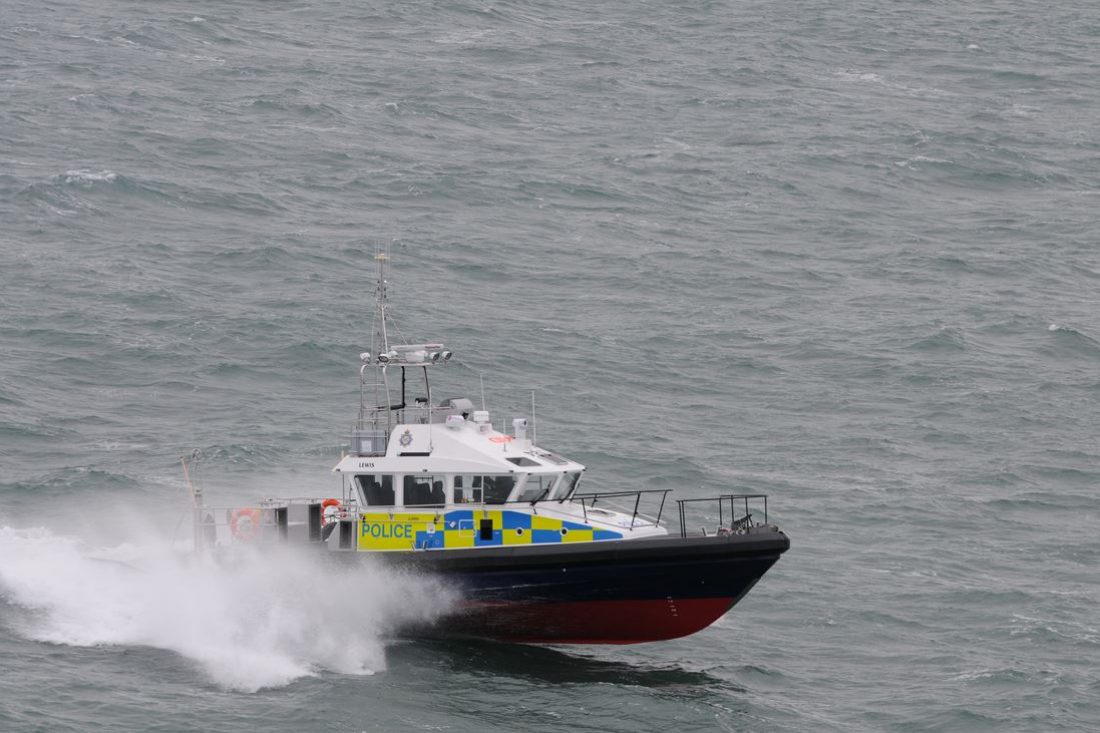

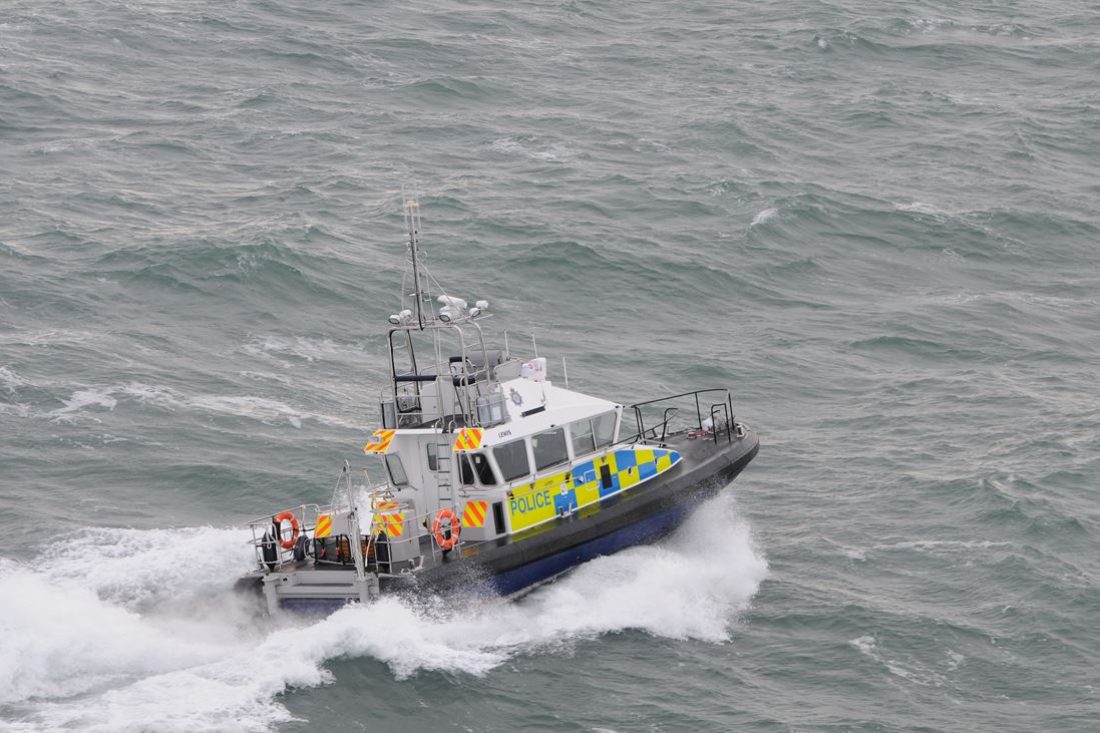

- Max Speed: 33 Knots
- Range: 275 Nm at 32 Knots
- Main Engines: Twin Caterpillar C18 @ 715bhp (533kW)
- Gearboxes: Twin Disc MG5114SC
- Waterjet: Rolls Royce FF37 with Vector Stick-IIC electronic-hydraulic control system
- DC Generator
- Air Conditioning
- Advanced Empir-Bus electrical distribution system: 24V DC system, 240V AC system, AC inverter/battery charger
- Fuel capacity: 2550 litres
- Water capacity: 170 litres
- Complement Crew: 3
- Passengers: Up to 12
- Galley: Typical fit-out includes microwave, fridge, HW Boiler, sink
- Saloon: Typical fit-out includes bench seating, 4 berths and mess table
- W/C: Incorporating sink & shower
- Upper steering & surveillance position
- Large aft engine service hatches
- MOB recovery system

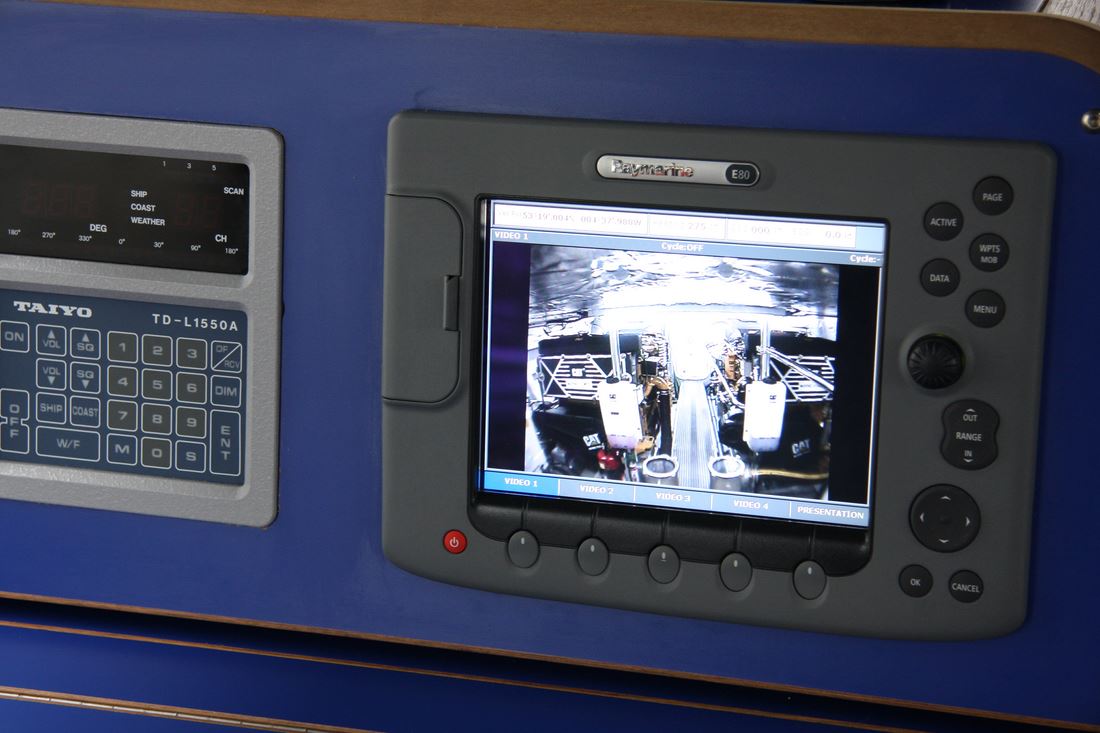

- Comprehensive navigation system

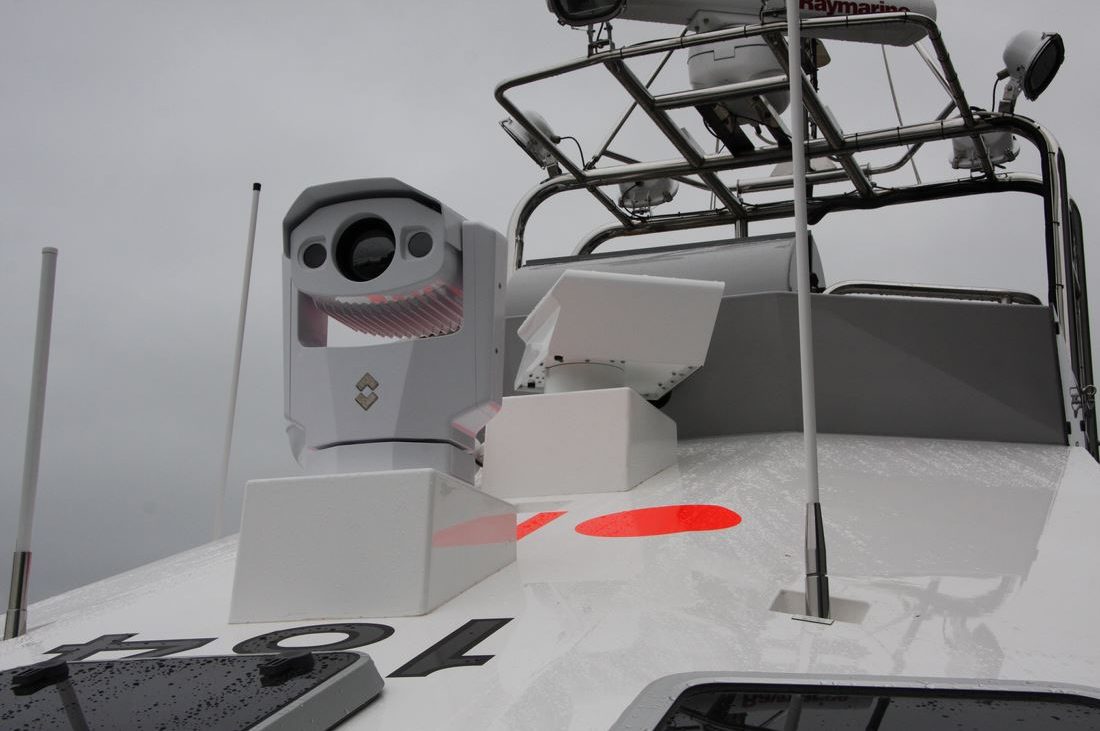

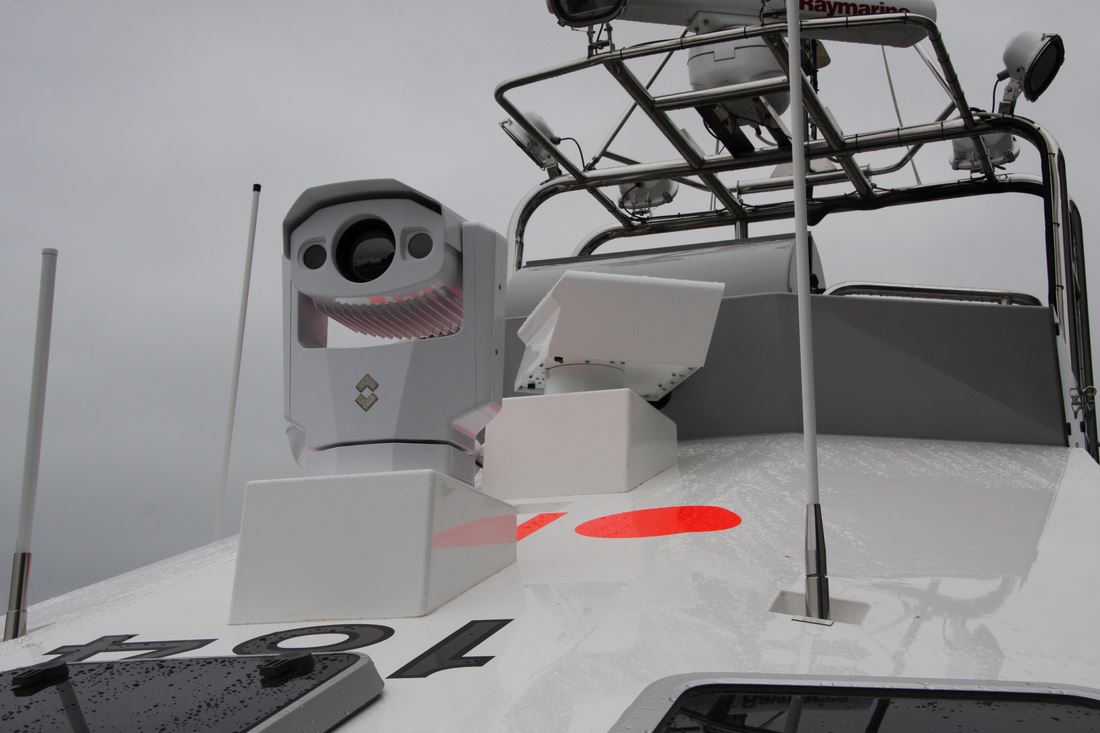

- Stabilised night vision surveillance system
- Fender System: Advanced closed cell polyethelene/elastomer
- Dynema ballistic protection system:
- Remote controlled searchlight:
- Armament: Capable of carrying variety of weapons fit
