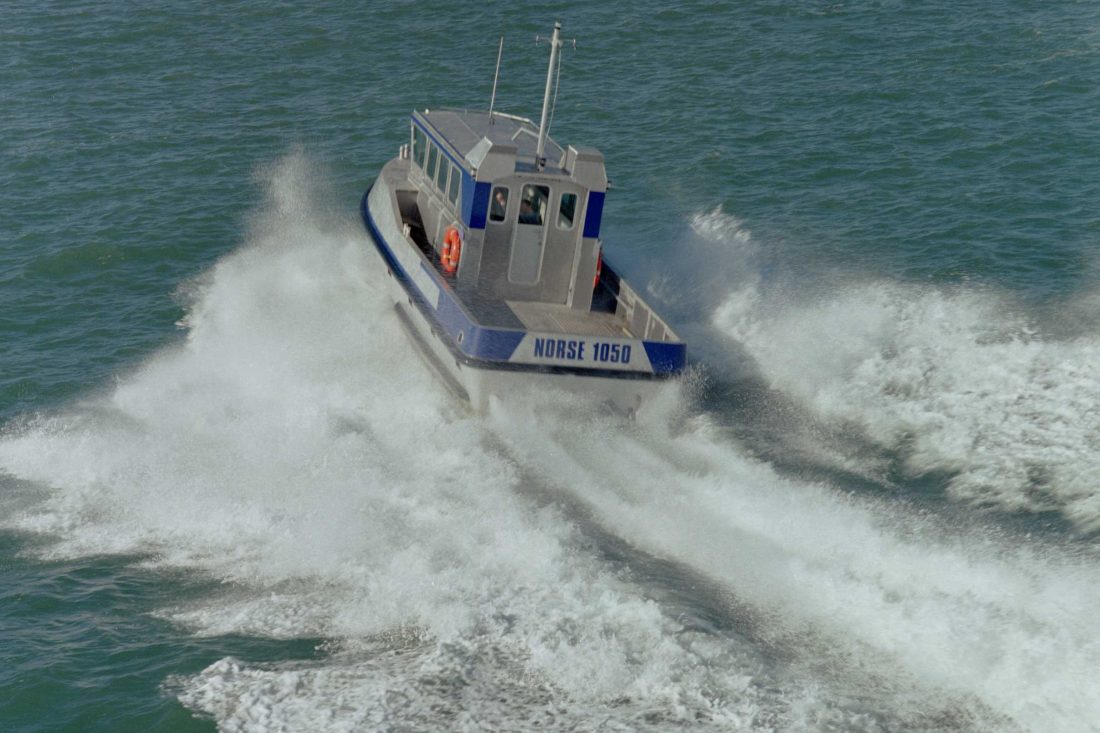

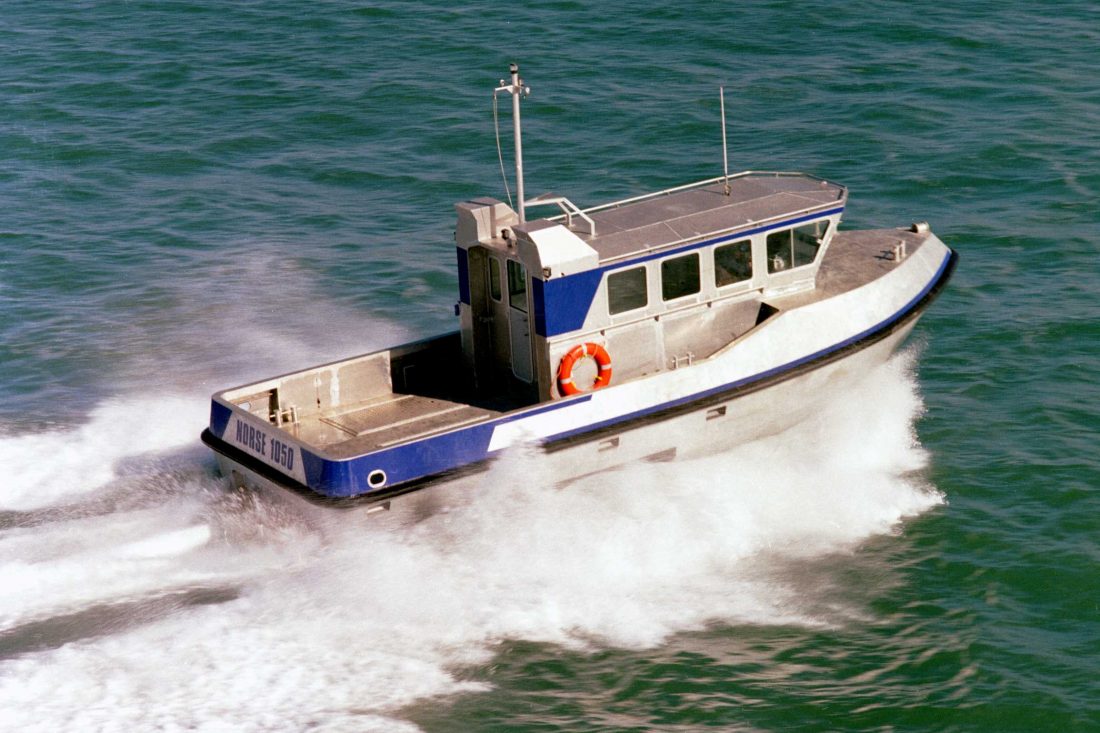

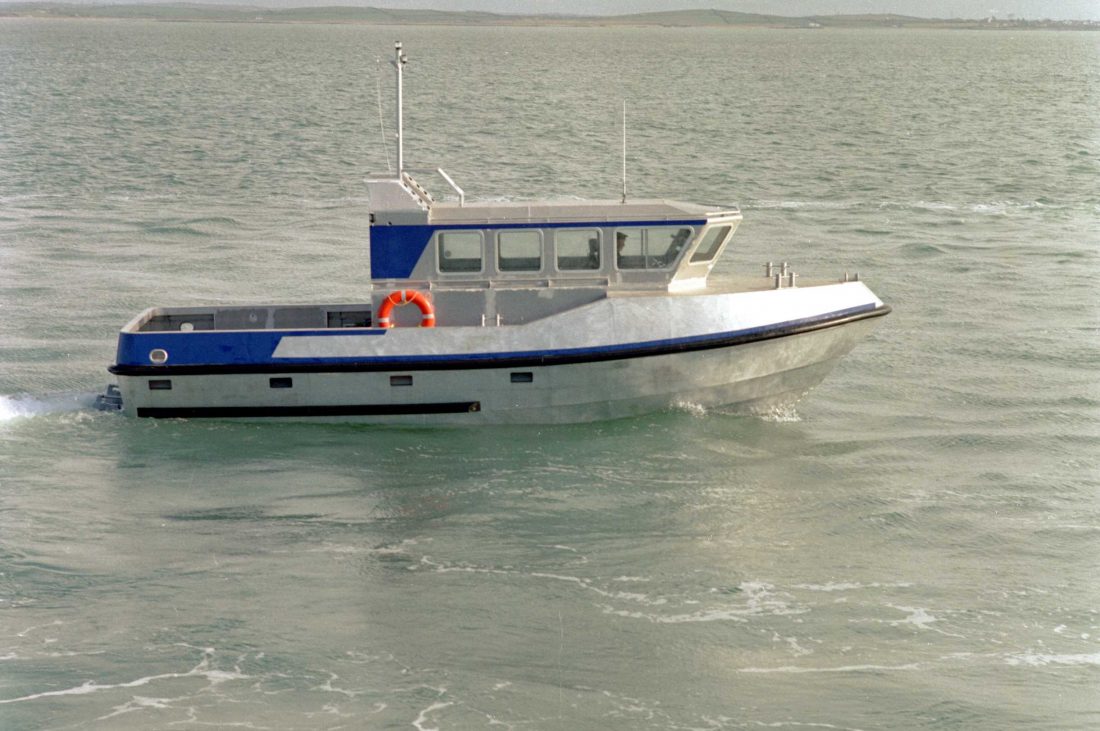

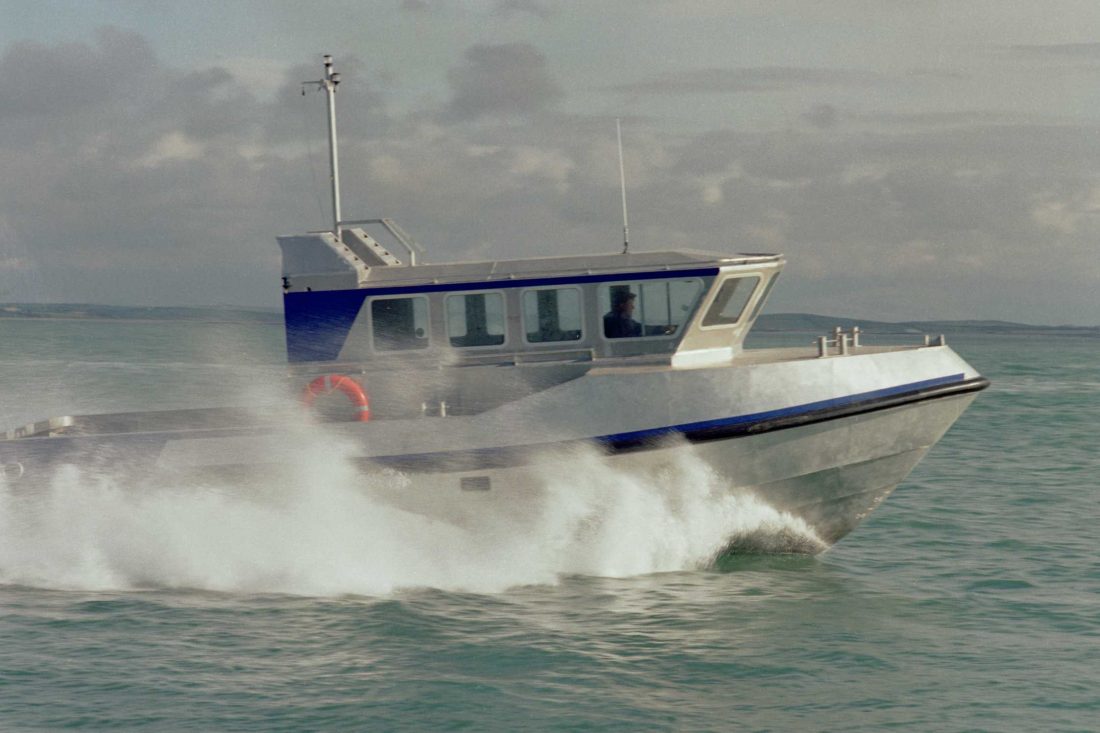

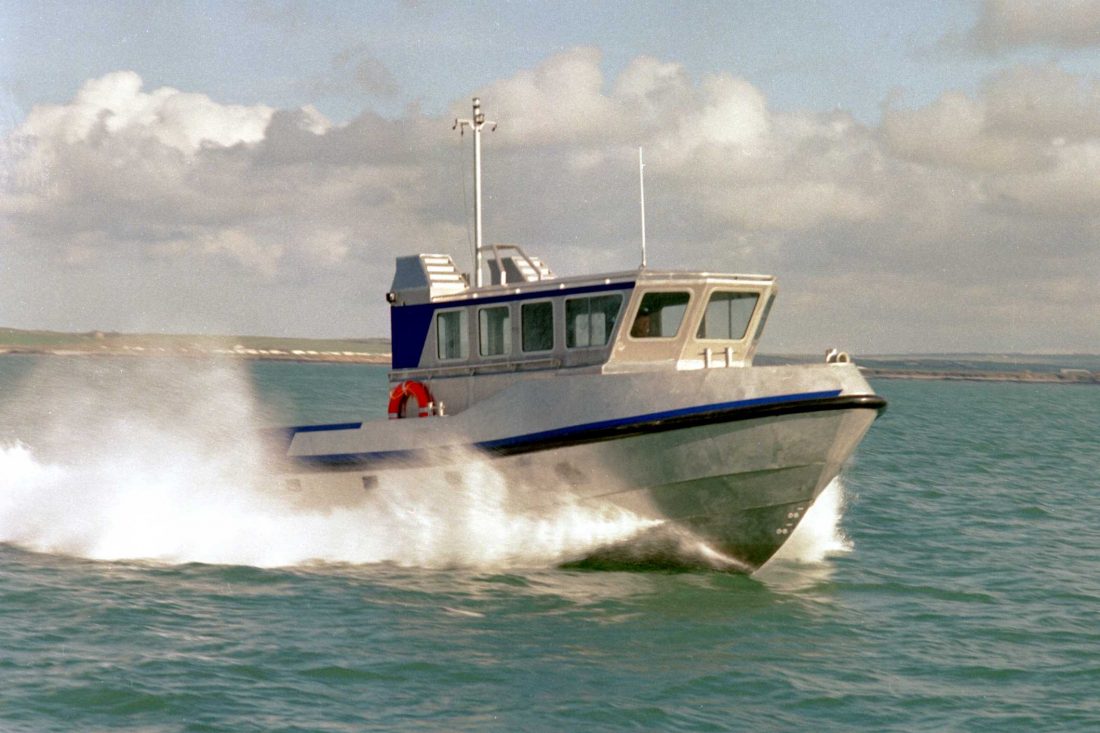

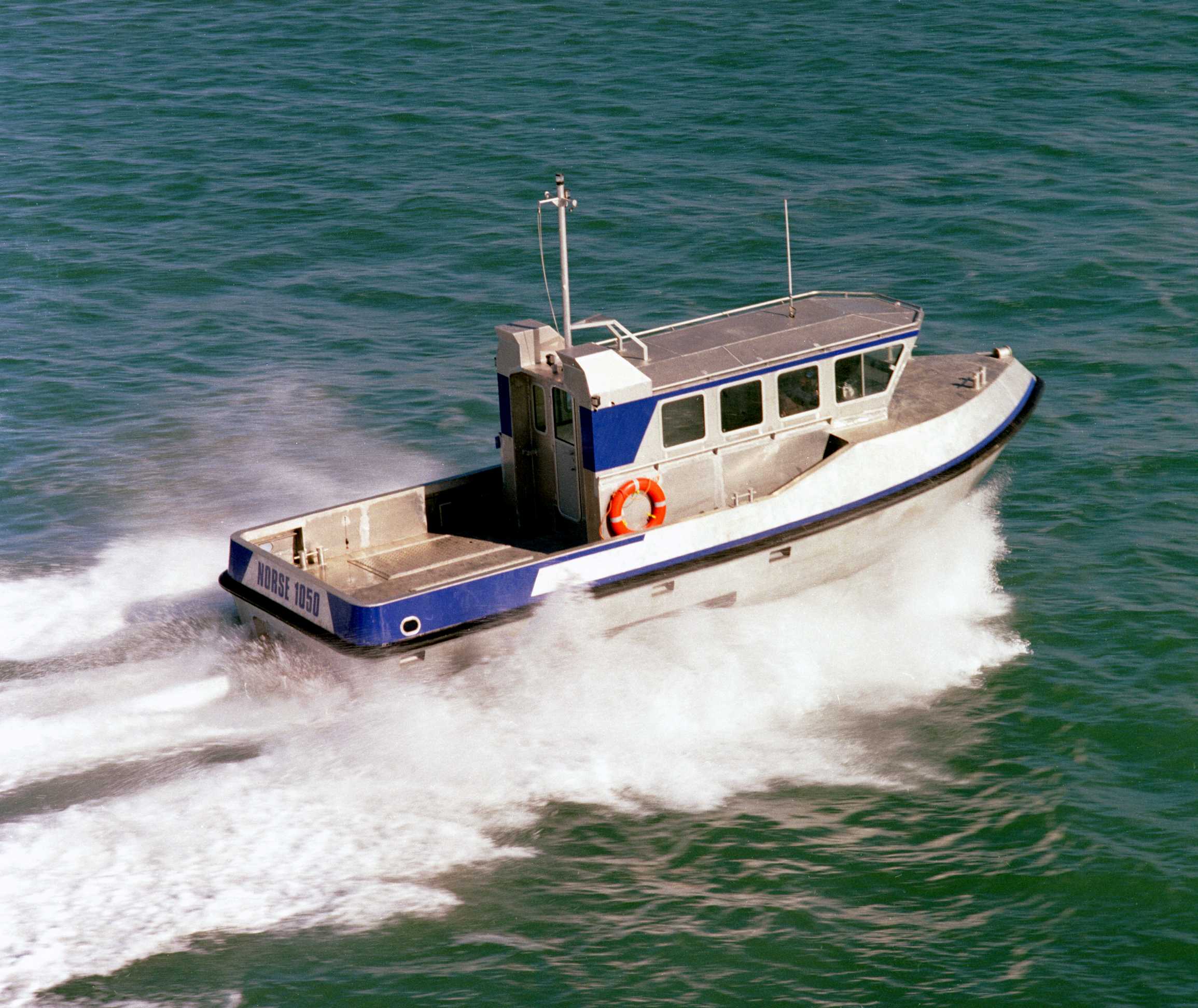

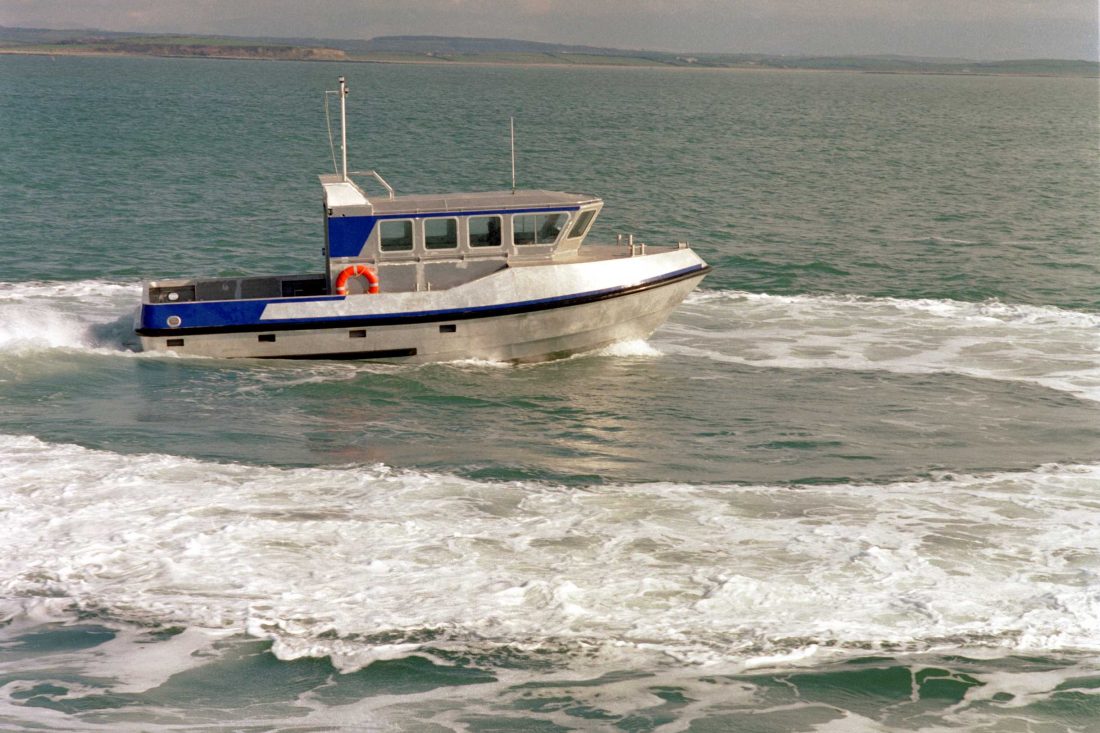

The Norse 1050 design uses a proven double chine hull form to produce a robust, seaworthy craft, with good stability and load carrying abilities. It is capable of being used in a wide variety of workboat roles.

The Norse 1050 can accept a number of wheelhouse sizes and a wide range of engine/propulsion and equipment combinations to enable the vessel to be configured for a broad variety of tasks. Potential uses for the Norse 1050 include Crew Transfer, Patrol Duties, Hydrographic Survey, Harbour Launch, Pilotage and Safety Boats. The design and construction techniques that are used to build the Norse range enable vessels to be built specifically to individual customer requirements. This vessel type is one of a range of similar workboats ranging from 8.5m to 16m in length that are available in aluminium or steel construction. All the Norse range of workboats have a central helm position with good all round visibility and easy access to controls and instruments in both the console and the overhead instrument panel. Dependent on the wheelhouse arrangement, accommodation may be designed to include berths, galley and toilet facilities.


  • Length OA (inc. Fender): 10.40m
  • Length Waterline: 9.13m
  • Beam OA (inc. Fender): 3.31m
  • Draught: (light condition) 0.70 m
  • Construction Material: Fabricated Aluminium (Grade 5083)
  • Max Speed: 25 knots
  • Speed 25 knots at 7.5 tonnes 22 knots at 9.0 tonnes
  • Main Engines Twin Perkins Sabre 265 Ti 265 BHP @ 2500 rpm
  • Transmission Twin Disc MG5091 Gearboxes
  • Water Jets Hamilton 291
  • Electrical 24v DC – two banks of batteries 240v AC – 6 Kva from M.E. driven alternator
  • Fuel Capacity 900 litres
  • Forepeak Chain locker/anchor stowage
  • Fwd Accommodation Toilet, wash basin, microwave
  • Wheelhouse Seating for six, various layouts
  • Tank Space Tanks, fire system, storage space
  • Tankage Fuel Capacity 900 litres, Fresh Water 75 litres, Grey Water 30 Litres
  • Deck Equipment Fendering Polyurethane covered elastomer foam high performance system, Handrails System of removable sections of rails around working deck
  • Navigational Aids & Communications Daylight viewing radar, DGps, Echosounder, DSC VHF radio, Telephone, Flux gate compass
  • Domestic Services Microwave, water boiler, flush toilet, wash basin
  • Bilge System Engine driven and hand operated bilge pumps
  • E.R. Fire system Aqua mist water spray system
